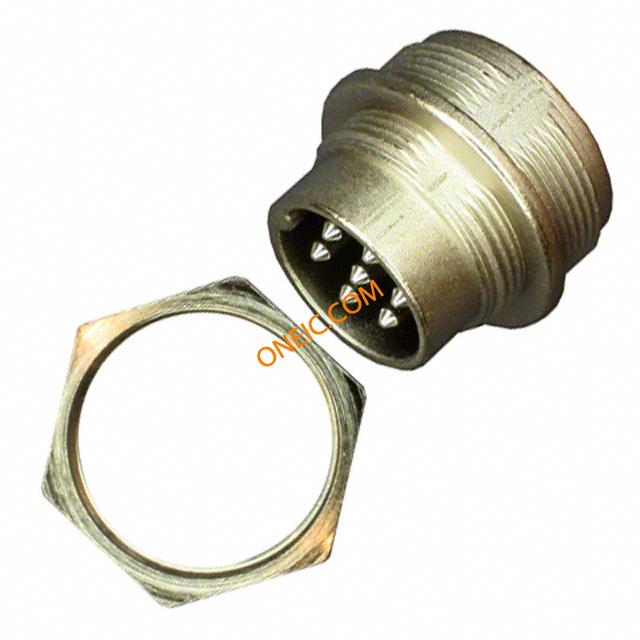

T 3477 009
| Manufacturer | |
| Description | Circular DIN Connectors 7 Pin male; Front Pnl Mnt CONN MALE RCPT 7POS FRONT PNL MT connector, circular din, male panel recept, front mt, 7 silver-pltd solder contact Connector: circular; Series: C091A; male; socket; silver plated |
| Category |
Business
| Part # Aliases | 009 3477 34B9033 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | Connector - Voltage Input | with hex nut |
Mechanical
| Weight | 0.02 kg | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20 AWG |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder Cup | Contact Type | Pin |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | for panel mounting, rear side nut |
| Package / Case | Metal | Connector Usage | Threaded |
| Locking Feature | threaded joint, external thread | Panel Thickness | max 3.5mm |
| Housing Material | Die Cast | Package Quantity | 50 |
| Primary Material | DIN | Size / Dimension | see |
| Connector - Cable | socket | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 7 |
| Dielectric Material | Thermoplastic | Number of Positions | 7 |
| Shell Size - Insert | DIN | Shell Material, Finish | Die Cast, Nickel Plated |
| Contact Material - Plating | silver plated | 1st Connector Mounting Feature | DIN EN 60130-9 |
Product Info
| Spg | 50 | Type | Panel Socket |
| Gender | Male | Series | C 091 A |
| Features | Shielded | Main Purpose | Shielded |
| Manufacturer | C091-A Series | Product Type | Connectors |
| Adapter Series | C091A | Number of Units | 1 |
| RF Family/Standard | C091A | Output Configuration | Panel Mount, Bulkhead - Rear Side Nut |
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
