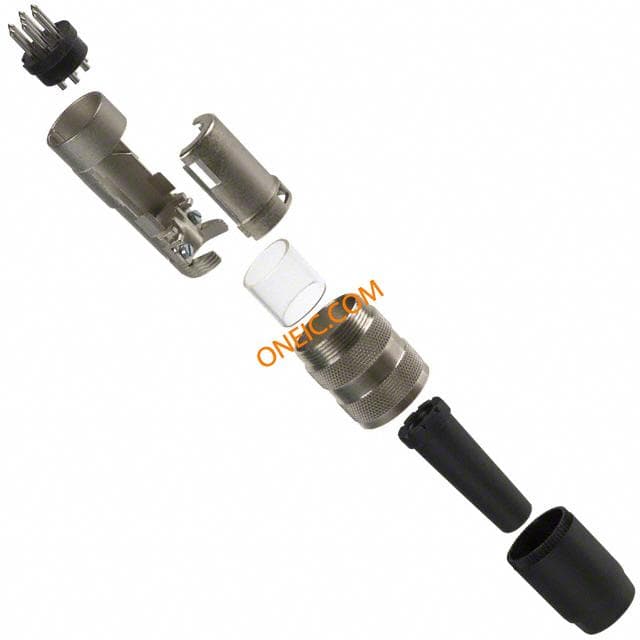

T 3485 001
| Manufacturer | |
| Description | Circular DIN Connectors C091A ST CBL JCK 7P CONN FEMALE 7POS CABLE MT SILVER Conn Circular F 7 POS Solder ST Cable Mount 7 Terminal 1 Port CONN FEMALE 7POS INLINE SILVER connector, circular din, str female cableconn, 7din silver-pltd solder cont, ip40 Cable box, C091A 7-pin DIN Poles=7, T 3485 001, Amphenol |
| Category |
Business
| Part # Aliases | 001 3485 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
| Approval Agency Marking | UL Recognized/IEC | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 100V | Number of Poles | 7 |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 40 |
Mechanical
| Diameter | 17 mm | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | 20 AWG |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Contact Form | 7Signal |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 4 mm to 6 mm | Cable End Type | 3...6 mm |
| Connector Type | Plug, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Mounting Style | Cable | Package / Case | Metal |
| Connector Usage | Threaded | Locking Feature | M16 x 0.75 screw locking |
| Contact Material | CuZn+Ag | Housing Material | Die Cast |
| Length - Overall | 68 mm | Primary Material | DIN |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 7 | Dielectric Material | Thermoplastic |
| Number of Positions | 7 | Shell Size - Insert | DIN (270 Degree) |
| 1st Connector Gender | Female | Shell Material, Finish | Die Cast, Nickel Plated |
Product Info
| Type | Circular | Design | Cable socket |
| Gender | Female | Series | C 091 A |
| Features | Shielded, Strain Relief | Main Purpose | Shielded, Strain Relief |
| Manufacturer | C091-A Series | Product Type | Connectors |
| Connection Method | 0.5 | RF Family/Standard | C091A |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
T 3475 001
amphenol
Conn Circular M 7 POS Solder ST Cable Mount 7 Terminal 1 Port CONN CIR MALE 7POS CBL MNT Circular DIN Connectors 7P CABLE PLUG PLUG, FREE, C091A, 7WAY connector, circular din, str male cable connector, 7 silver-plated solder contact Cable connector, C091A 7-pin Poles=7, T 3475 001, Amphenol
