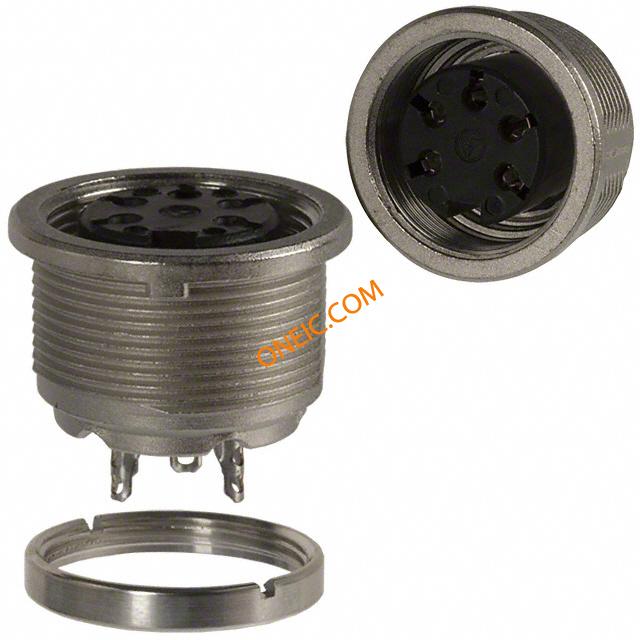

T 3363 000
| Manufacturer | |
| Description | Conn Circular F 5 POS Solder ST Panel Mount 5 Terminal 1 Port CONN CIR RCPT FMALE 5POS PNL MNT Circular DIN Connectors 5P PANEL FEMALE SOCKET, FRONT PANEL MNT, C091A, 5WAY connector, circular din, female panel recept, front mt, 5 silver-pltd solder cont Device bushing C091A 5-pin Poles=5, T 3363 000, Amphenol |
| Category |
Business
| Part # Aliases | 000 3363 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85366990 |
| Rad Hardened | No | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.014 | Diameter | 20 mm |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Termination | Solder | Contact Form | 5Signal |
| Contact Type | 5Signal | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Mounting Style | Panel | Package / Case | Metal |
| Connector Usage | Threaded | Insertion Angle | :- |
| Material - Body | :- | Contact Material | :- |
| Housing Material | Die Cast | Length - Overall | 17.5 mm |
| Primary Material | DIN | Termination Style | Crimp / Solder |
| 1st Contact Gender | F | Number of Contacts | 5 |
| Contact Termination | :Solder | Dielectric Material | Thermoplastic |
| Number of Positions | 5 | Shell Size - Insert | DIN (240 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Circular | Gender | RCP |
| Series | :C091A | Features | Shielded |
| Manufacturer | C091-A Series | Product Type | Connectors |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
T 3360 001
amphenol
Conn Circular M 5 POS Solder ST Cable Mount 5 Terminal 1 Port 05P MALE CABLE CONNECTOR CONN CIR MALE 5POS CBL MNT Circular DIN Connectors 5P CABLE PLUG 6MM PLUG, FREE, C091A, 5WAY connector, circular din, str male cable conn, 5 silver plt solder contact, ip 40 Cable connector, C091A 5-pin Poles=5, T 3360 001, Amphenol

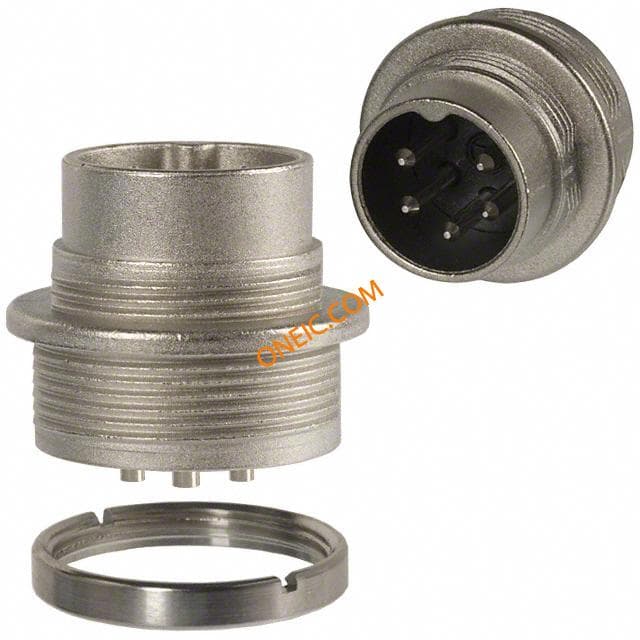

T 3362 000
