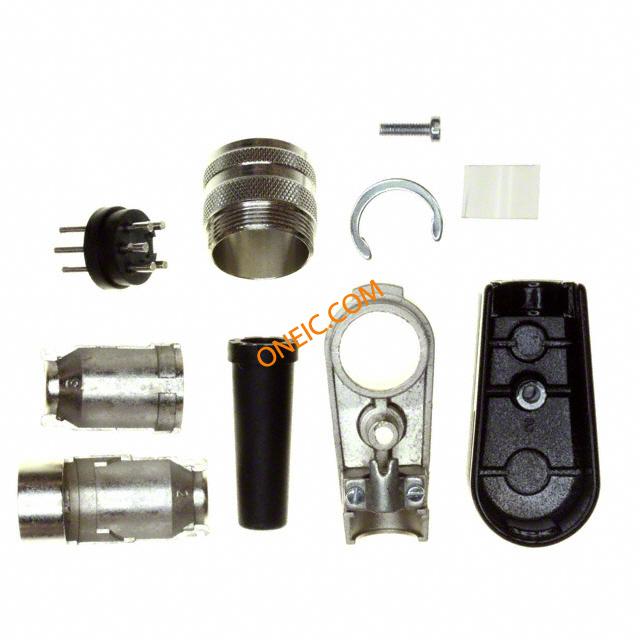

T 3360 005
| Manufacturer | |
| Description | Circular DIN Connectors 5 Pin Male;R/A Cable Mount CONN MALE 5POS CABLE MNT R/A PLUG, FREE, R/A, C091A, 5WAY CONN MALE 5POS INLINE MNT R/A connector, circular din, rt angle male cable conn, 5 silver plt solder contact Connector: circular; Series: C091A; male; plug; silver plated; IP40 Cable plug angled series C091A 5-pin Poles=5, T 3360 005, Amphenol |
| Category |
Business
| Part # Aliases | 005 3360 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Standards | UL E63093 | Tariff No | 85389099 |
| Approval Agency Marking | UL Recognized/IEC | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.054 | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20 AWG |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Contact Type | Pin |
| Mounting Type | Free Hanging (In-Line), Right Angle | Shell Plating | Nickel |
| Angle of Throw | Right | Cable Diameter | 4 mm to 6 mm |
| Connector Type | Plug, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Mounting Style | for cable | Package / Case | Metal |
| Connector Usage | Threaded | Insertion Angle | :- |
| Locking Feature | threaded joint, external thread | Material - Body | :- |
| Contact Material | :- | Housing Material | Die Cast |
| Package Quantity | 10 | Primary Material | DIN |
| Size / Dimension | see | Connector - Cable | plug |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 5 | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic | Number of Positions | 5 |
| Shell Size - Insert | DIN (240 Degree) | Shell Material, Finish | Die Cast, Nickel Plated |
| Contact Material - Plating | silver plated | 1st Connector Mounting Type | :Cable |
| 1st Connector Mounting Feature | DIN EN 60130-9 | ||
Product Info
| Spg | 10 | Type | Cable Plug |
| Gender | :Plug | Series | :C091A |
| Features | Shielded, Strain Relief | Manufacturer | C091-A Series |
| Product Type | Connectors | Adapter Series | C091A |
| Number of Units | 1 | RF Family/Standard | C091A |
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
