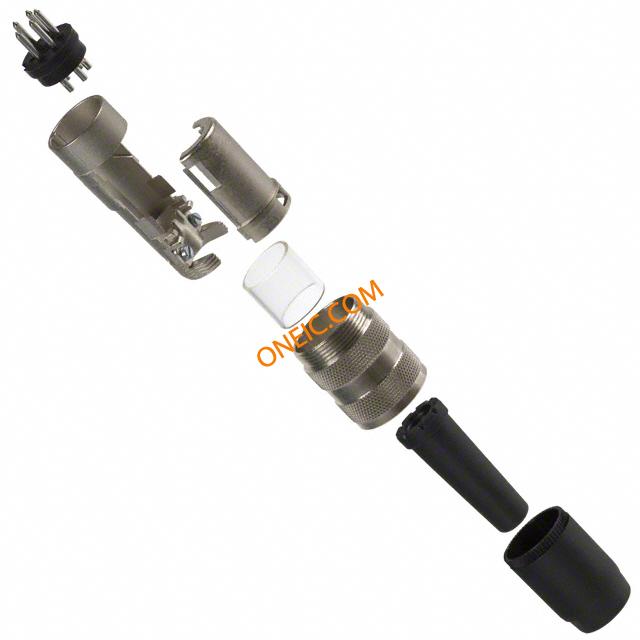

T 3360 001
| Manufacturer | |
| Description | Conn Circular M 5 POS Solder ST Cable Mount 5 Terminal 1 Port 05P MALE CABLE CONNECTOR CONN CIR MALE 5POS CBL MNT Circular DIN Connectors 5P CABLE PLUG 6MM PLUG, FREE, C091A, 5WAY connector, circular din, str male cable conn, 5 silver plt solder contact, ip 40 Cable connector, C091A 5-pin Poles=5, T 3360 001, Amphenol |
| Category |
Business
| MOQ | 1 | Unit Pack | 50 |
| Part # Aliases | 001 3360 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366990 | Automotive | NO |
| Leadfree Defin | RoHS-conform | Protection Features | 40 |
| Approval Agency Marking | UL Recognized/IEC | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.03 | Diameter | 17 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 5 | Orientation | SOLDER |
| Termination | Solder | Contact Type | 5Signal |
| Mounting Type | Cable Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 3-6 mm |
| Connector Type | Plug, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Mounting Style | Wire | Package / Case | Metal |
| Connector Usage | Threaded | Insertion Angle | :- |
| Material - Body | :- | Contact Material | :- |
| Housing Material | Die Cast | Length - Overall | 67.5 |
| Primary Material | DIN | Termination Style | MALE |
| 1st Contact Gender | M | Number of Contacts | 5 |
| Contact Termination | :Solder | Dielectric Material | Thermoplastic |
| Number of Positions | 5 | Shell Size - Insert | DIN (240 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | Contact Layout, Typical | PLUG |
| Contact Material - Plating | -40 TO 85 | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Circular | Gender | :Plug |
| Series | C091A | Features | Shielded, Strain Relief |
| Matchcode | T3360001 | Manufacturer | C091-A Series |
| Product Type | Connectors | Standard Leadtime | 12 weeks |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | SCREW°C | ||
Documents & Media
Similar Parts

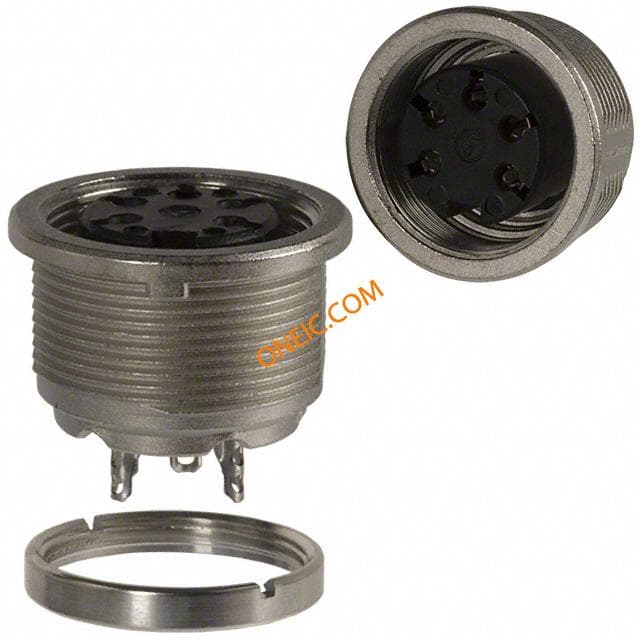

T 3363 000
