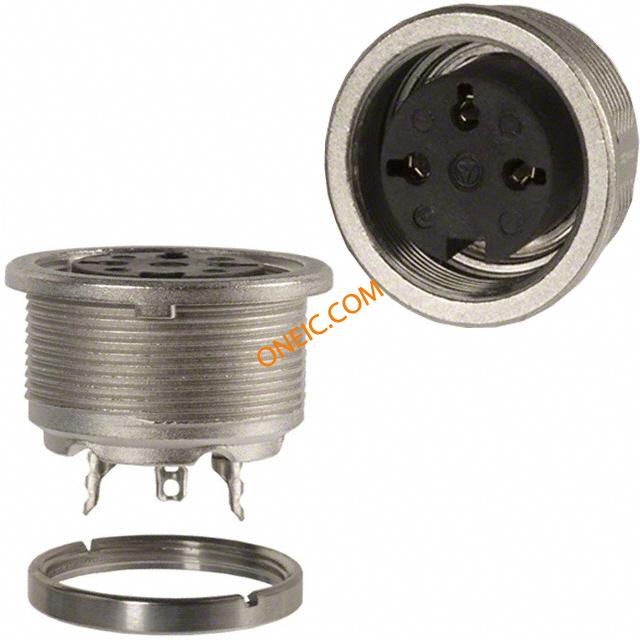

T 3263 000
| Manufacturer | |
| Description | Conn Circular F 3 POS Solder ST Panel Mount 3 Terminal 1 Port CONN CIR RCPT FMALE 3POS PNL MNT Circular DIN Connectors 3P DIN PANEL FEMALE SOCKET, FRONT PANEL MNT, C091A, 3WAY connector, circular din, female panel recept, front mt, 3din silver-pltd solder cont Device bushing C091A 3-pin Poles=3, T 3263 000, Amphenol |
| Category |
Business
| Part # Aliases | 000 3263 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85366990 | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.014 | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20-26 |
| Orientation | Keyed | Termination | Solder |
| Contact Type | Socket | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Mounting Style | Panel | Package / Case | Metal |
| Connector Usage | Threaded | Insertion Angle | :- |
| Material - Body | :- | Contact Material | :- |
| Housing Material | Die Cast | Primary Material | DIN |
| Termination Style | Crimp / Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 3 | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic | Number of Positions | 3 |
| Shell Size - Insert | DIN (180 Degree) | Shell Material, Finish | Die Cast, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Circular | Gender | RCP |
| Series | :C091A | Features | Shielded |
| Manufacturer | C091-A Series | Product Type | Connectors |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
T 3260 002
Amphenol Tuchel
Circular DIN Connectors STRAIGHT MALE 3P 6-8MM SLVR PLT CONN PLUG 3POS CABLE PIN Cable connector, C091A 3-pin Poles=3, T 3260 002, Amphenol

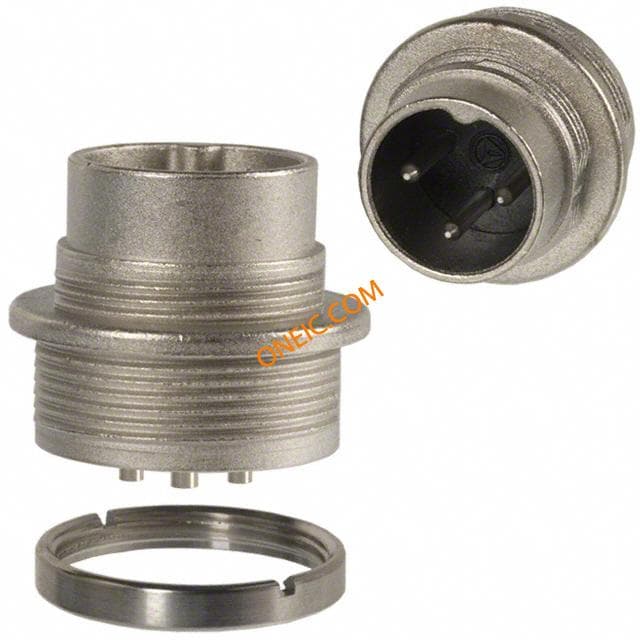

T 3262 000
Amphenol Tuchel
Circular DIN Connectors 3P DIN PANEL MALE Conn Circular M 3 POS Solder ST Panel Mount 3 Terminal 1 Port CONN CIR RCPT MALE 3POS PNL MNT PLUG, FRONT PANEL MOUNT, C091A, 3WAY CONNECTOR, CIRCULAR, RCPT, 3POS, PANEL Conn; Circ; DIN; Plug; 3 Cnt; C091 A; Solder; Front Mnt; Silver; 300V Appliance plug, C091A 3-pin Poles=3, T 3262 000, Amphenol

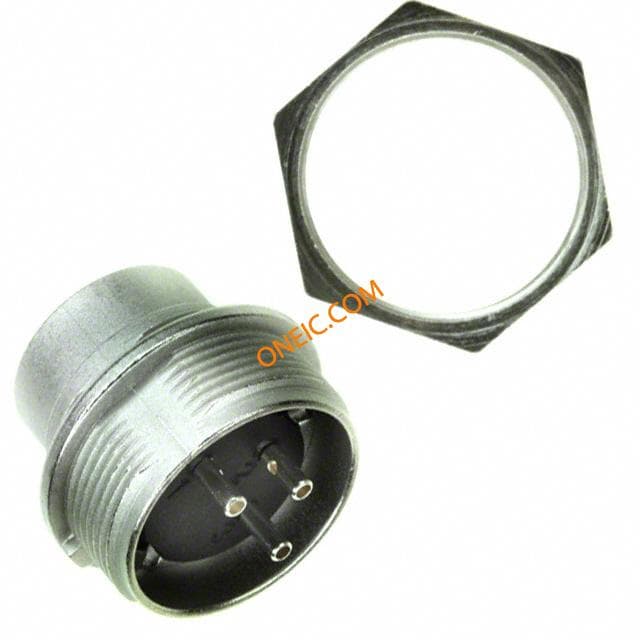

T 3262 009
