点击放大查看

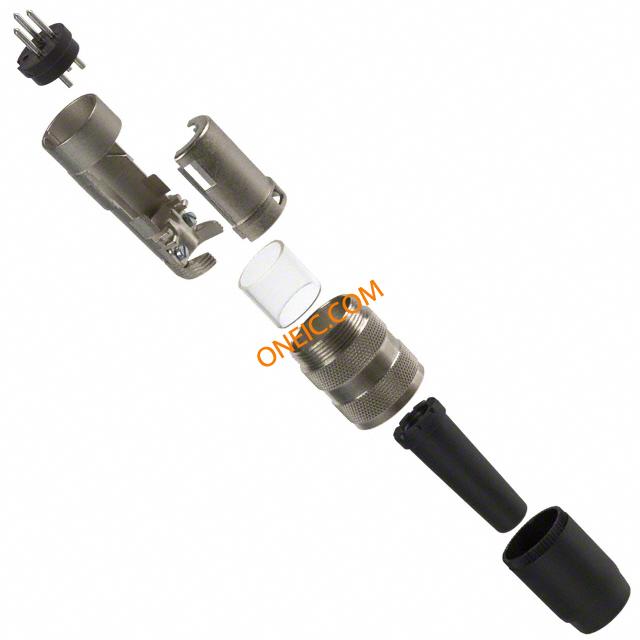

T 3260 001
| Manufacturer | |
| Description | Circular DIN Connectors 3P DIN CABLE PLUG Conn Circular M 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN CIR MALE 3POS CBL MNT PLUG, FREE, C091A, 3WAY connector, circular din, str male cable conn, 3din silver plt solder contact, ip40 Cable connector, C091A 3-pin Poles=3, T 3260 001, Amphenol |
| Category |
Business
| Part # Aliases | 001 3260 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366990 | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.035 | Diameter | 17 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Termination | Solder | Contact Type | 3Signal |
| Mounting Type | Cable Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 3-6 mm |
| Connector Type | Plug, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Mounting Style | Wire | Package / Case | Metal |
| Connector Usage | Threaded | Insertion Angle | :- |
| Material - Body | :- | Contact Material | :- |
| Housing Material | Die Cast | Length - Overall | 67.5 |
| Primary Material | DIN | Termination Style | Crimp / Solder |
| 1st Contact Gender | M | Number of Contacts | 3 |
| Contact Termination | :Solder | Dielectric Material | Thermoplastic |
| Number of Positions | 3 | Shell Size - Insert | DIN (180 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Circular | Gender | :Plug |
| Series | :C091A | Features | Shielded, Strain Relief |
| Manufacturer | C091-A Series | Product Type | Connectors |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts

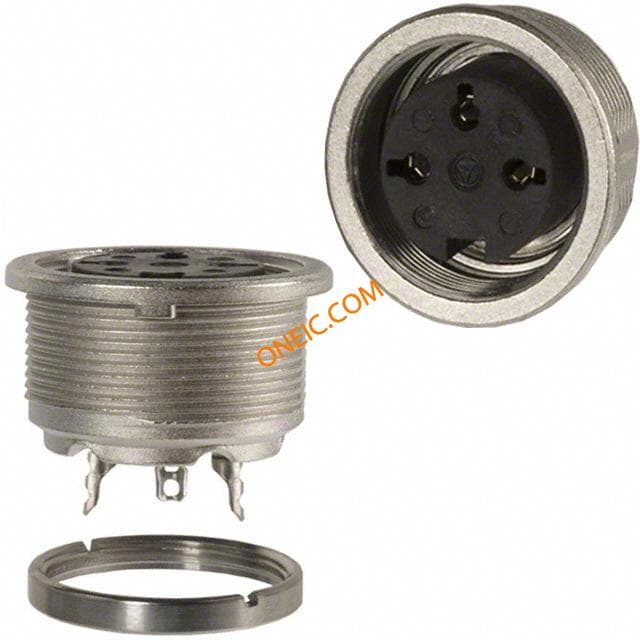

T 3263 000
