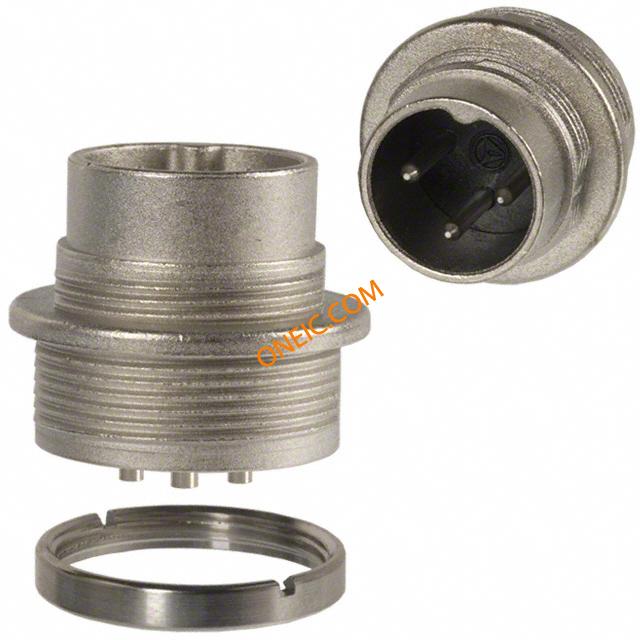

T 3262 000
| Manufacturer | |
| Description | Circular DIN Connectors 3P DIN PANEL MALE Conn Circular M 3 POS Solder ST Panel Mount 3 Terminal 1 Port CONN CIR RCPT MALE 3POS PNL MNT PLUG, FRONT PANEL MOUNT, C091A, 3WAY CONNECTOR, CIRCULAR, RCPT, 3POS, PANEL Conn; Circ; DIN; Plug; 3 Cnt; C091 A; Solder; Front Mnt; Silver; 300V Appliance plug, C091A 3-pin Poles=3, T 3262 000, Amphenol |
| Category |
Business
| Part # Aliases | 000 3262 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85366990 |
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.014 | Diameter | 20 |
| Packaging | Bulk | Cable Exit | Yes |
| Orientation | Keyed | Termination | Solder |
| Contact Type | 3Signal | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Mounting Style | Panel | Insertion Angle | :- |
| Material - Body | :- | Contact Material | :- |
| Length - Overall | 18 | Termination Style | Crimp / Solder |
| 1st Contact Gender | M | Number of Contacts | 3 |
| Contact Termination | :Solder | Number of Positions | 3 |
| Shell Size - Insert | DIN (180 Degree) | Shell Material, Finish | Die Cast, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Circular | Gender | RCP |
| Series | :C091A | Features | Shielded |
| Product Type | Connectors | RF Family/Standard | C091A |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -40°C ~ 100°C |
