PT06SE-10-6P

Manufacturer	Amphenol Corporation
Description	Conn MIL-C-26482 Circular PIN 6 POS Crimp ST Cable Mount 6 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN PLUG 6 POS STRAIGHT W/PINS
Category	Connector SolutionsCircular ConnectorsMiniature Circular Connectors

对参数有疑问？问 AI 助手

Business

Other Names

PT06SE106P

Standard Package

Bulk

Compliance

RoHS

Lead free / RoHS non-compliant

Electrical

Voltage Rating

600VAC

Current Rating (Max)

7.5A

Mechanical

Packaging	Bulk	Shell Size	10
Orientation	N (Normal)	Shell Style	straight plug
Termination	Crimp	Contact Type	pin contacts
Mounting Type	Cable Mount	Connector Type	Miniature Cylindrical Connector - bayonet lock connector with crimp contacts
Contact Finish	Gold	Fastening Type	Bayonet Lock
Insertion Angle	10-6	Number of Contacts	Yes
Number of Positions	6	Shell Size - Insert	10-6
Shell Material, Finish	Aluminum, Olive Drab Cadmium Plated

Product Info

Type	Miniature Cylindrical	Gender	PL
Service Class	environmental crimp

Environmental

Ingress Protection

Environment Resistant

Operating Temperature

-55°C ~ 125°C

Documents & Media

PDF Document

PT.pdf

PDF Document

MIL-C-26482, Series 1

Similar Parts

PT02E-10-6S

amphenol

Conn Miniature Cylindrical SKT 6 POS Solder ST Box Mount 6 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts Circular MIL Spec Connector 6P Size 10 Box Mount Socket Receptacle CONN RECEPT 6POS W/SOCKET SOLDER connector;metal circular;box mounting recept;size 10;6 #20 solder socket contact connector, metal circular, box mounting recept, size 10, 6 #20 solder socket contact

$64.8122

Details

PT02SE-10-6S

amphenol

Conn MIL-C-26482 Circular SKT 6 POS Crimp ST Box Mount 6 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN RECEPT 6POS W/SOCKETS CRIMP Circular MIL Spec Connector 6P Size 10 Box Mount Socket Receptacle CIRCULAR CONN, RCPT, SIZE 10, 6POS, BOX

$160.3773

Details

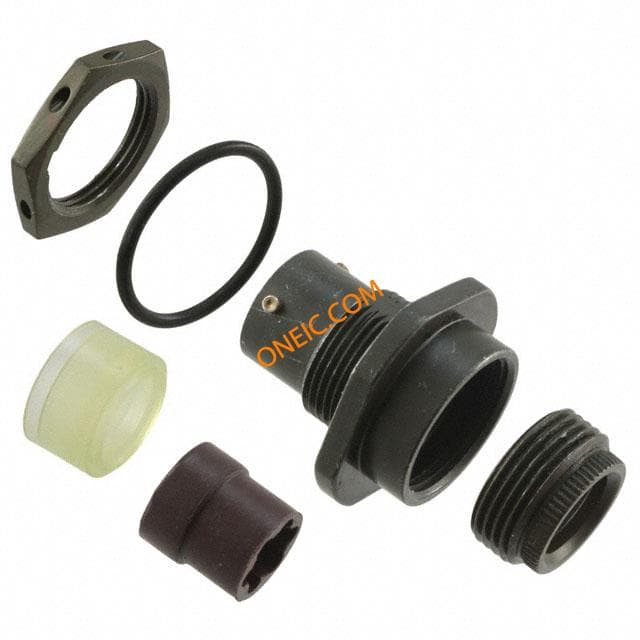

PT07E-10-6S
