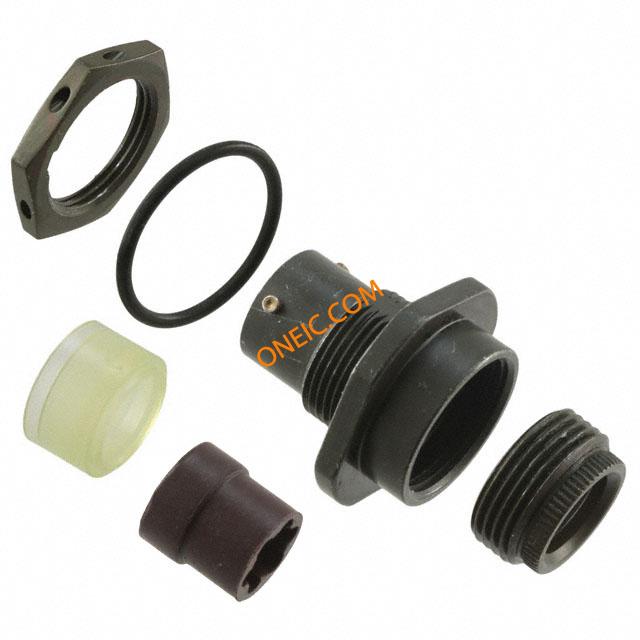

PT07E-10-6S
| Manufacturer | |
| Description | Conn Miniature Cylindrical SKT 6 POS Solder ST Jam Nut 6 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN RCPT 6 POS JAM NUT W/SCKT Circular MIL Spec Connector 6P Size 10 Jam Nut Socket Receptacle CONNECTOR, JAM NUT RECEPTACLE, CLASS E, SIZE 10, 6 #20 SOLDER SOCKET CONTACT |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PT07E106S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 10 |
| Wire Gauge | 20-24 | Orientation | N (Normal) |
| Shell Style | jam nut receptacle | Termination | Solder |
| Contact Type | socket contacts | Mounting Type | Jam Nut |
| Shell Plating | Chromate over Cadmium, Olive Drab | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Panel Thickness | 0.125 " |
| Housing Material | Aluminum | Primary Material | 26482 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Bayonet | Number of Contacts | 6 |
| Dielectric Material | Neoprene | Number of Positions | 6 |
| Shell Size - Insert | 10-6 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 6#20 | ||
Product Info
| Type | Miniature Cylindrical | Class | E |
| Gender | RCP | Series | PT |
| Features | 5 Key/Keyway Polarization | Manufacturer | PT Series |
| Product Type | Receptacles | Service Class | environmental resisting open wire seal with grommet and nut |
| Application Specifics | Commercial | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
