PT02SE-10-6S
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular SKT 6 POS Crimp ST Box Mount 6 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN RECEPT 6POS W/SOCKETS CRIMP Circular MIL Spec Connector 6P Size 10 Box Mount Socket Receptacle CIRCULAR CONN, RCPT, SIZE 10, 6POS, BOX |
| Category |
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Weight | 0.014 | Packaging | Bulk |
| Shell Size | 10 | Wire Gauge | 20-24 |
| Orientation | N (Normal) | Shell Style | box mount receptacle |
| Termination | Crimp | Contact Type | socket contacts |
| Mounting Type | Box Mount | Shell Plating | Chromate over Cadmium, Olive Drab |
| Connector Type | Miniature Cylindrical Connector - bayonet lock connector with crimp contacts | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Mounting Style | Panel |
| Shell Material | Aluminum Alloy | Insertion Angle | 10-6 |
| Material - Body | :Aluminium | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Bayonet |
| Number of Contacts | Yes | Number of Positions | 6 |
| Shell Size - Insert | 10-6 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| 1st Connector Mounting Type | :Box | ||
Product Info
| Type | MIL-C-26482 Circular | Gender | RCP |
| Series | PT | Product Type | Receptacles |
| Service Class | environmental crimp | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts

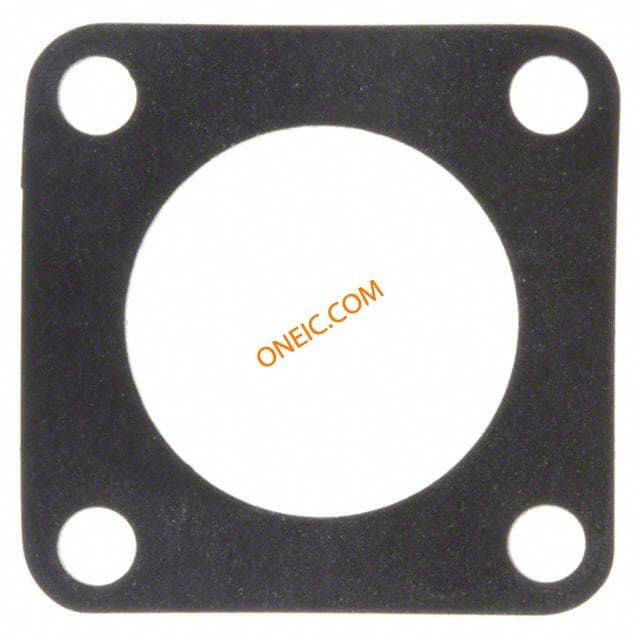

10-101949-010
