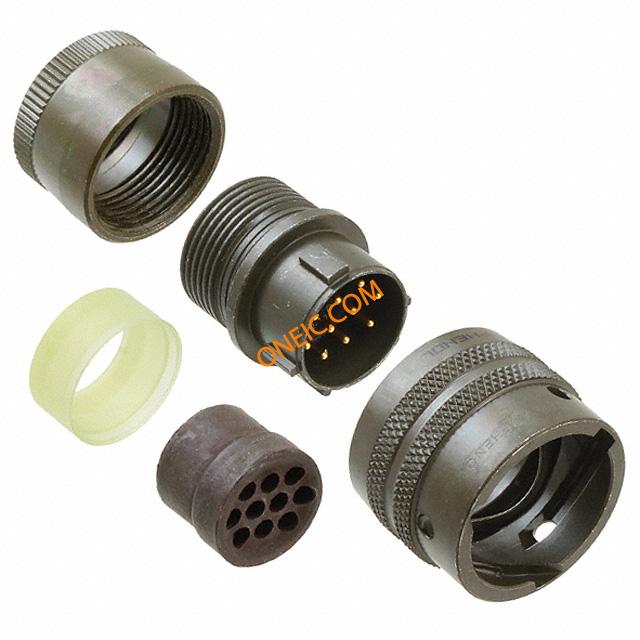

PT06E-12-10P
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular PIN 10 POS Solder ST Cable Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 10 POS STRAIGHT W/PINS Circular MIL Spec Connector 10P Size 12 Straight Pin Plug connector, straight plug, class e, size 12, 10 #20 solder pin contact |
| Category |
Business
| Other Names | PT06E1210P | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 12 |
| Wire Gauge | 20-24 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Solder |
| Contact Type | pin contacts | Mounting Type | Cable Mount |
| Shell Plating | Chromate over Cadmium, Olive Drab | Angle of Throw | Straight |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Wire | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Housing Material | Aluminum |
| Primary Material | 26482 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Bayonet |
| Number of Contacts | 10 | Dielectric Material | Neoprene |
| Number of Positions | 10 | Shell Size - Insert | 12-10 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 10#20 |
Product Info
| Type | MIL-C-26482 Circular | Class | E |
| Gender | PL | Series | PT |
| Features | 5 Key/Keyway Polarization | Manufacturer | PT Series |
| Product Type | Plugs | Service Class | environmental resisting open wire seal with grommet and nut |
| Application Specifics | Commercial | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts

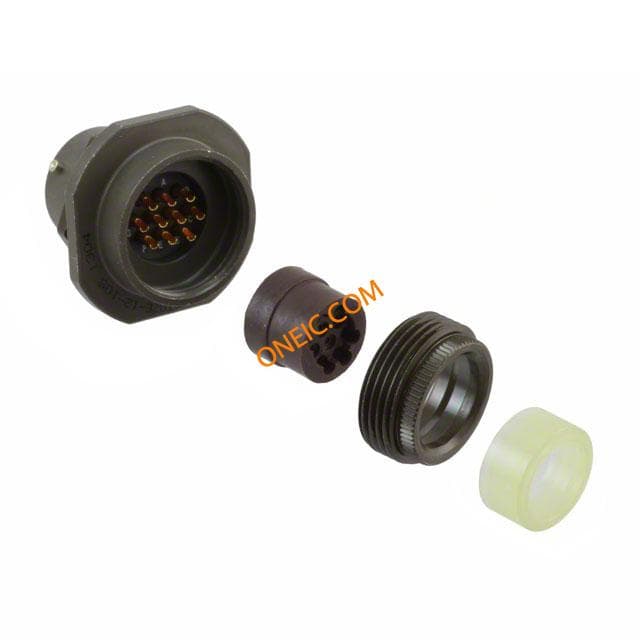

PT07E-12-10S
