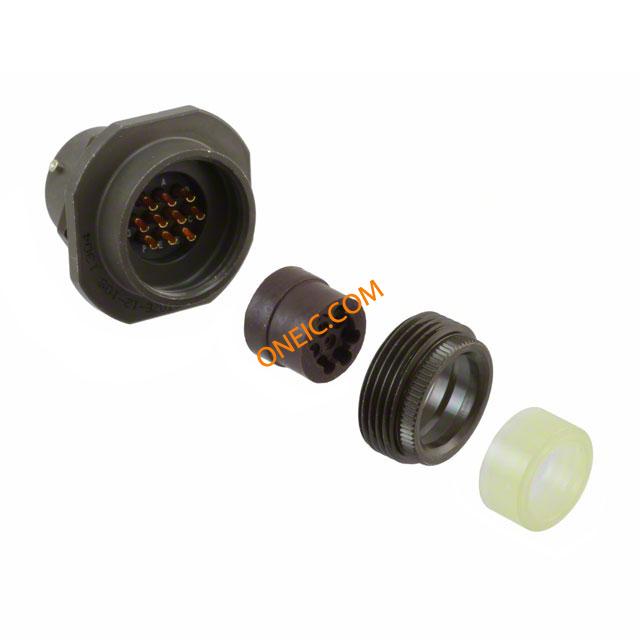

PT07E-12-10S
| Manufacturer | |
| Description | Conn Miniature Cylindrical SKT 10 POS Solder ST Jam Nut 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts Circular MIL Spec Connector 10P Size 12 Jam Nut Socket Receptacle CONN RCPT 10 POS JAM NUT W/SCKT CONNECTOR, JAM NUT RECEPTACLE, CLASS E, SIZE 12, 10 #20 SOLDER SOCKET CONTACT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 12 |
| Wire Gauge | 20-24 | Orientation | N (Normal) |
| Shell Style | jam nut receptacle | Termination | Solder |
| Contact Type | socket contacts | Mounting Type | Jam Nut |
| Shell Plating | Chromate over Cadmium, Olive Drab | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Panel Thickness | 0.125 " |
| Housing Material | Aluminum | Primary Material | 26482 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Bayonet | Number of Contacts | 10 |
| Dielectric Material | Neoprene | Number of Positions | 10 |
| Shell Size - Insert | 12-10 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 10#20 | ||
Product Info
| Type | Miniature Cylindrical | Class | E |
| Gender | RCP | Series | PT |
| Features | 5 Key/Keyway Polarization | Manufacturer | PT Series |
| Product Type | Receptacles | Service Class | environmental resisting open wire seal with grommet and nut |
| Application Specifics | Commercial | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
