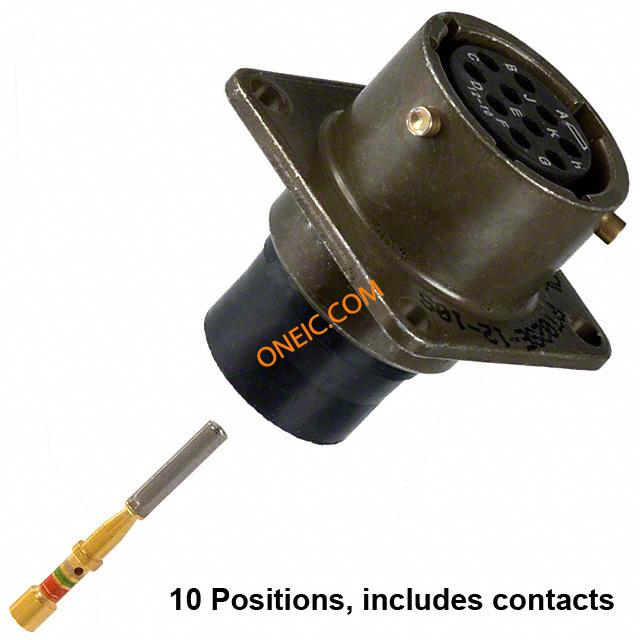

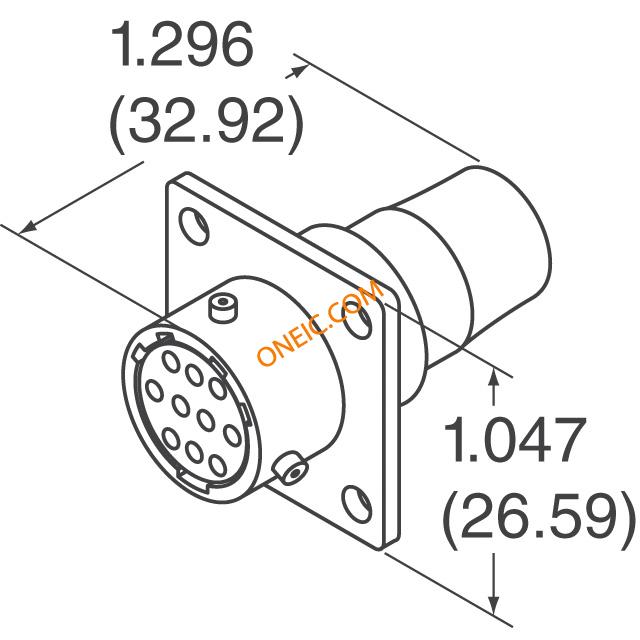

PT02SE-12-10S
| Manufacturer | |
| Description | Conn Miniature Cylindrical SKT 10 POS Crimp ST Box Mount 10 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN RECEPT 10POS W/SOCKET CRIMP Circular MIL Spec Connector 10P Sz 12 Box Mount Socket Receptacle |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 12 |
| Wire Gauge | 20-24 | Orientation | N (Normal) |
| Shell Style | box mount receptacle | Termination | Crimp |
| Contact Type | socket contacts | Mounting Type | Box Mount |
| Shell Plating | Chromate over Cadmium, Olive Drab | Connector Type | Miniature Cylindrical Connector - bayonet lock connector with crimp contacts |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Panel | Shell Material | Aluminum Alloy |
| Insertion Angle | 12-10 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Bayonet |
| Number of Contacts | Yes | Number of Positions | 10 |
| Shell Size - Insert | 12-10 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
Product Info
| Type | Miniature Cylindrical | Gender | RCP |
| Series | PT | Product Type | Receptacles |
| Service Class | environmental crimp | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
