68175-1005
| Manufacturer | |
| Description | Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc straight plug;crimp-crimp;for rg59(20awg center cond) RF Connectors / Coaxial Connectors PLUG RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP |
| Category |
Business
| Product | Connectors | Part # Aliases | 000-68175-1005 38F1201 713-9819 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Coupling Factor | Bayonet |
| Frequency - Max | 2GHz | Insulation Resistance | 5000 MOhms |
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Cable Type | RG-59, RG-62, RG-140, RG-210, Belden 8241, Belden 8263, Belden 8279 | Body Finish | Nickel |
| Cable Group | RG-59 20AWG, Belden 1426A, 8212, 9100, 9240, 9259, 9274, 9275, 9659 | Orientation | Straight |
| Termination | Crimp | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Connector Style | BNC |
| Contact Material | Brass | Termination Style | Cable - Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp or Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | Straight |
Product Info
| Type | BNC | Gender | PL |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | 000-68175-1005 | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts
9104 010U1000
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 1000ft BOX BLACK CABLE, COAXIAL, RG59/U, 20AWG, 75 OHM, 1000FT, BLK Coax - CATV Cable 20 AWG GIFHDLDPE SH FRPVC Black
9259 010U1000
Belden Wire & Cable
Coaxial Cables 22AWG 1C SHIELD 1000ft BOX BLACK Coax - 75 Ohm Coax 22 AWG PE RG-59/U Type Black
9275 010U1000
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 1000ft BOX BLACK Coax - 75 Ohm Coax 20 AWG LDPE/GIFHDLDPE SH FRPVC Black
9100 010U500
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK Coax - 75 Ohm Coax 20 AWG GIFHDLDPE SH FRPVC Black

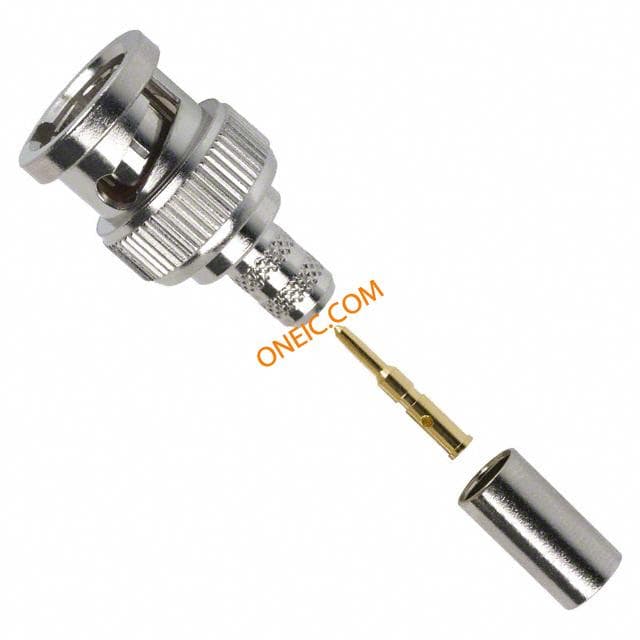

112507
