| Manufacturer | |
| Description | Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg59;62 20awg cc;75 ohm RF Connectors / Coaxial Connectors BNC CRIMP PLUG RG 59/U-75 OHM RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg59, 62 20awg cc, 75 ohm |
| Category |
Business
| Product | Connectors | Other Names | ACX1005 |
| Part # Aliases | 08H0102 319-0005 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bag | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Frequency | 0 to 1 GHz | Impedance | 75 Ohm |
| Voltage Rating | 500V | Coupling Factor | Bayonet |
| Frequency - Max | 4GHz | ||
Mechanical
| Weight | 0.349918 oz | Diameter | 14.5 |
| Packaging | Bulk | Cable Type | RG-59/U, Belden 1515, Belden 9104, Belden 9108 |
| Body Finish | Nickel | Cable Group | RG-59, 20AWG |
| Orientation | Straight | Termination | Crimp |
| Weight (g): | 12.00000 | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug, Male Pin |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | Nickel | Plating - Body | Nickel |
| Connector Style | BNC | Connector Usage | Bayonet |
| Contact Material | Brass | Housing Material | Brass |
| Length - Overall | 25 | Primary Material | BNC |
| Termination Style | Cable - Crimp | Shield Termination | Crimp |
| Contact Termination | Crimp | Dielectric Material | Polyoxymethylene (POM) Acetal |
| Insulation Material | Delrin | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | :Straight Plug |
Product Info
| Type | BNC | Gender | PL |
| Features | Captivated Contact | Polarity | Standard |
| Connection Type | RG59/U Cable | RF Family/Standard | 112507 |
| Application Specifics | Commercial | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | - 40 C to + 155 C |
Documents & Media
Similar Parts
31-212-1005
amphenol
Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver connector;rf coaxial;bnc straight plug;clamp/solder;for rg59(20awg-cc);50 ohm RF Connectors / Coaxial Connectors STRAIGHT CLAMP PLUG RG59 50ohm
112713
amphenol connex

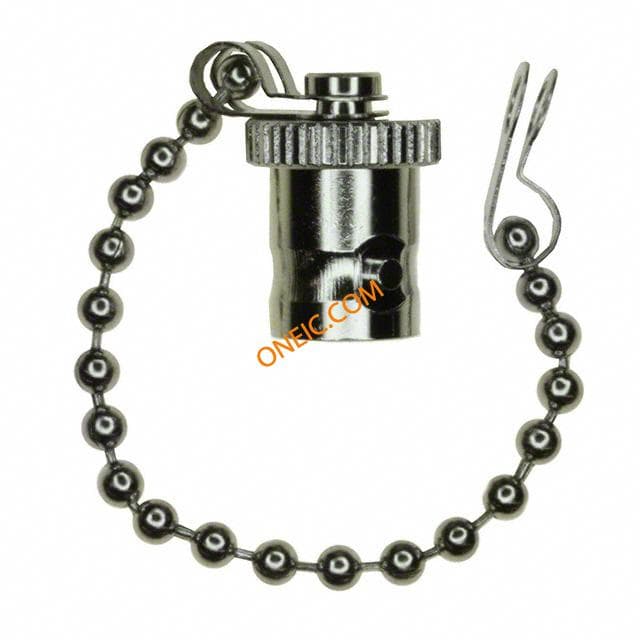

Connector Accessories BNC Female Cap With Chain Brass Nickel Finish CONN BNC FEMALE CAP W/CHAIN connector accessory;rf coaxial;bnc female cap and 100mm chain;for plugs RF Connector Accessories BNC JACK CAP AND CHAIN CAP, BNC COAXIAL CONNECTOR
47-10070
amphenol connex
Crimp Tool With Die Crimpers CRIMP TOOL W/ DIE .255/.213/.068 Hand Tools CRIMP TOOL W/ DIE .255/.213/.068 TOOL CRIMP W/DIES .255/.213/.068 tool;ratcheted hand crimp tool w/die set;cavities: .255;.213;.068 (see notes) HAND CRIMP TOOL W/DIE SET tool, ratcheted hand crimp tool w/die set, cavities: .255, .213, .068 (see notes)
47-20000
amphenol connex
DIE FOR RG58,59,62 BNC/TNC Punches & Dies DIE FOR RG58 59 62 BNC/TNC TOOL DIE SET .225/.213/.068 DIE FOR RG58, 59, 62 BNC/TNC
31-71008
amphenol

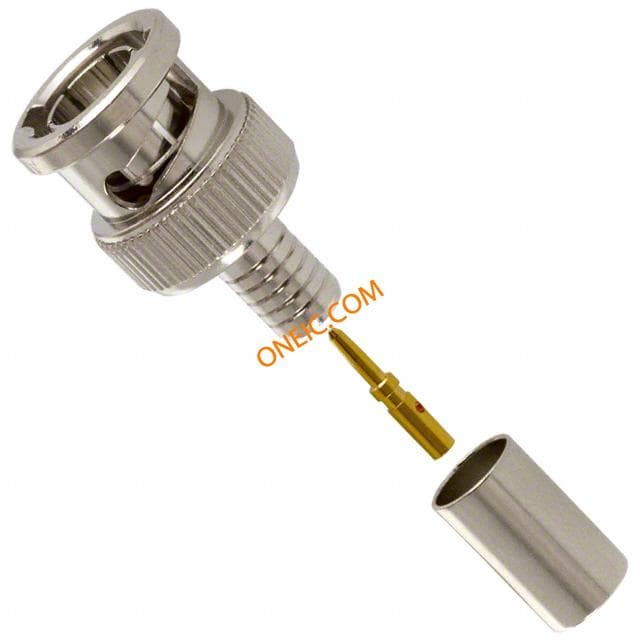

Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str plug;crimp-crimp;rg59;62;(see notes);75 ohm-t2 RF Connectors / Coaxial Connectors STRT PLG RG59 Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP For RG-59/62 - Belden 5539Y5, 8221, 8241, 8241A, 8241F, 8263, 8279, 8279A, 9209, 9209A, 9244
