9100 010U500
| Manufacturer | |
| Description | Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK Coax - 75 Ohm Coax 20 AWG GIFHDLDPE SH FRPVC Black |
| Category |
Business
| Product Category | Coaxial Cables | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 75 Ohms | Voltage Rating | 300 V |
| Impedance - Unbalanced/Balanced | RG 59 | ||
Mechanical
| Length | 500 ft | Weight | 12.125 lbs |
| Shielding | Shielded | Cable Type | COAXIAL |
| Wire Gauge | 20 | Shield Type | BOTH, BRAID OVER FOIL |
| Jacket Color | Black | Conductor Type | SOLID CONDUCTOR |
| Conductor Material | Bare Copper Covered Steel | Diameter - Outside | 0.237 in |
| Dielectric Material | FPE-FOAMED (CELLULAR) POLYETHYLENE | Number of Cable Pairs | Solid |
| Jacket (Insulation) Material | Polyvinyl Chloride (PVC) | ||
Product Info
| Series | 9100 | UNSPSC Code | 26121606 |
| Number of Positions/Contacts | 1 | ||
Environmental
| Flooded | NO NOT FLOODED OVER BRAID | Fire Rating | GENERAL PURPOSE (CM, CMG, CMX) |
| Ingress Protection | NO NOT OUTDOOR GRADE MATERIAL | Maximum Temperature Limit | + 80 C |
Documents & Media
Similar Parts
68175-5RFX
Amphenol RF
RF Connectors SRT PLG RG59 Ni CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc commercial str plug;crimp-crimp;rg59(20awg cc);50 ohm RF Connectors / Coaxial Connectors SRT PLG RG59 Ni Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP coaxial connectors
31-70008-1000
amphenol
Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount connector;rf coaxial;bnc str plug;crimp-crimp;rg59(20awg cc)(see notes)75 ohm-t1 RF Connectors / Coaxial Connectors 75 OHM BNC PLUG RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP RF/Coaxial, BNC straight plug, 75 OHM, crimp, RG59
68175-1005
amphenol
Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc straight plug;crimp-crimp;for rg59(20awg center cond) RF Connectors / Coaxial Connectors PLUG RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP

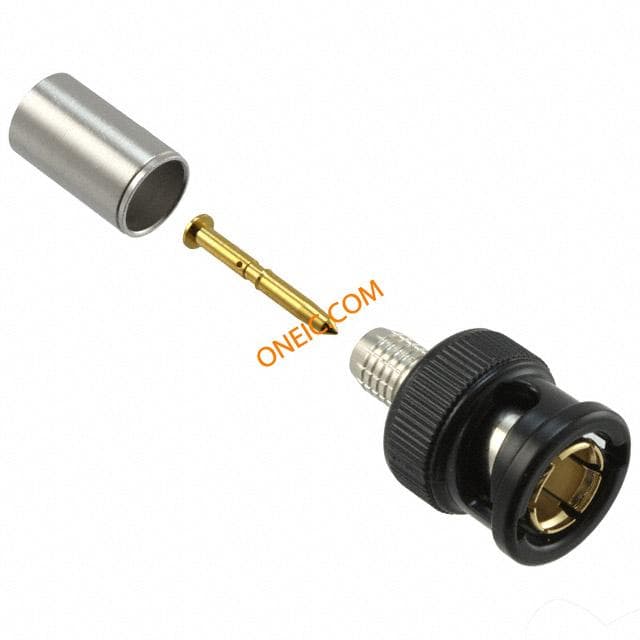

UPL2000-D2
