31-71008
| Manufacturer | |
| Description | Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str plug;crimp-crimp;rg59;62;(see notes);75 ohm-t2 RF Connectors / Coaxial Connectors STRT PLG RG59 Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP For RG-59/62 - Belden 5539Y5, 8221, 8241, 8241A, 8241F, 8263, 8279, 8279A, 9209, 9209A, 9244 |
| Category |
Business
| Product | Connectors | Part # Aliases | 031-71008 16R0626 713-8607 90F8483 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Frequency | 0 to 1 GHz | Impedance | 75 Ohm |
| Voltage Rating | 500V | Coupling Factor | Bayonet |
| Frequency - Max | 2GHz | ||
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Cable Type | RG-59, RG-62, RG-140, RG-210, Belden 8241, Belden 8263, Belden 8279 | Body Finish | Nickel |
| Cable Group | RG-59, Belden 8221, 8241, 8241A, 8241F, 8263, 8279A, 9209, 9209A, 9244 | Orientation | Straight |
| Termination | Crimp | Weight (g): | 11.40000 |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Cable Mount | Connector Type | Plug, Male Pin |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Connector Style | BNC | Contact Material | Brass |
| Termination Style | Cable - Crimp | Shield Termination | Crimp |
| Contact Termination | Crimp | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Straight | ||
Product Info
| Type | BNC | Gender | PL |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | 031-71008 | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts
9209 010U1000
Belden Wire & Cable
Coaxial Cables 23AWG 1C SHIELD 1000ft BOX BLACK COAXIAL CABLE; 75 OHM IMP.; 23AWG SOLID; ANALOG/DIGITAL VIDEO CABLE BLACK COAXIAL CABLE, 75 OHM IMP., 23AWG SOLID, ANALOG/DIGITAL VIDEO CABLE BLACK Coax - Miniature 75 OHM MINI Video Cable Black
9209 010U500
Belden Wire & Cable
Coaxial Cables 23AWG 1C SHIELD 500ft BOX BLACK COAXIAL CABLE, 75 OHM IMP., 23AWG SOLID, ANALOG/DIGITAL VIDEO CABLE BLACK Coax - Miniature 75 OHM MINI Video Cable Black
112507
amphenol connex
Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg59;62 20awg cc;75 ohm RF Connectors / Coaxial Connectors BNC CRIMP PLUG RG 59/U-75 OHM RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg59, 62 20awg cc, 75 ohm
SBC8241
Bomar Interconnect
RF コネクタ PLUG FOR 8241 CONN BNC PLUG STR 75 OHM CRIMP RF Connectors / Coaxial Connectors PLUG FOR 8241 Conn BNC M 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold Conn;RF;BNC;Straight;CablePlug;RG/U59(23AWG);75Ohms;Brass
SPC20099
Avnet, Inc.
RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP
SPC11205
Avnet, Inc.

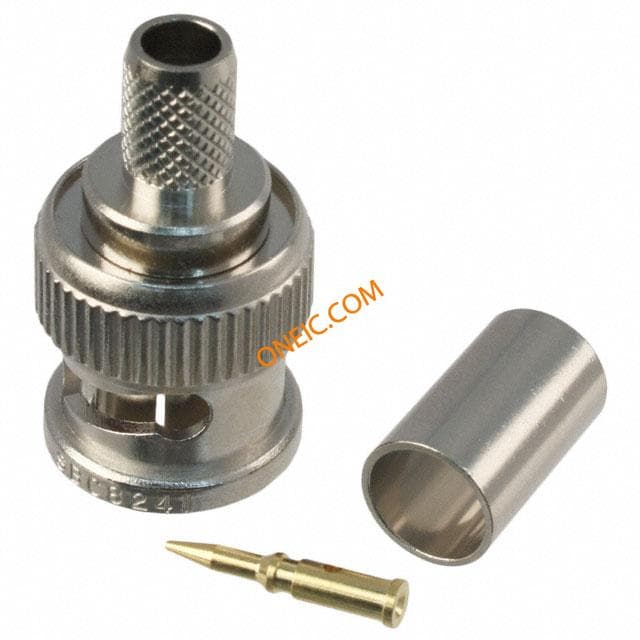

SBC8241
