SBC8241
| Manufacturer | |
| Description | RF コネクタ PLUG FOR 8241 CONN BNC PLUG STR 75 OHM CRIMP RF Connectors / Coaxial Connectors PLUG FOR 8241 Conn BNC M 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold Conn;RF;BNC;Straight;CablePlug;RG/U59(23AWG);75Ohms;Brass |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Other Names | 991-1010 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Impedance | 75 Ohm | Voltage Rating | 500V |
| Frequency - Max | 1GHz | ||
Mechanical
| Packaging | Bulk | Cable Type | RG/U59(23AWG) |
| Body Finish | Nickel | Cable Group | Belden 8241 |
| Orientation | Straight | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Plug, Male Pin |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | Nickel | Mounting Style | CableMount |
| Connector Style | BNC | Material - Body | Brass |
| Contact Material | Brass | Primary Material | BNC |
| Termination Style | Crimp | Mating Orientation | Bayonet |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | TFE | Center Contact Plating | Nickel |
| Center Contact Material | Brass | ||
Product Info
| Type | CablePlug | RF Family/Standard | BNC |
Documents & Media
PDF Document
Online Document
Online Document
Online Document
Similar Parts

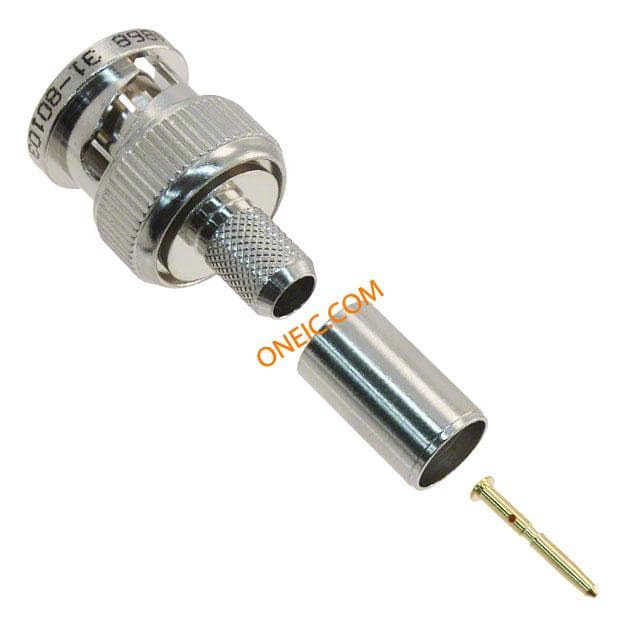

031-80103
