T 3486 000
| Manufacturer | |
| Description | Circular DIN Connectors C091A ST REC PLG 7P CONN RCPT 7POS PANEL MNT PIN PLUG, FRONT PANEL MOUNT, C091A, 7WAY Appliance plug, C091A 7-pin DIN Poles=7, T 3486 000, Amphenol |
| Category |
Business
| Other Names | T3486000 | Part # Aliases | 000 3486 T U |
| Product Category | Circular DIN Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | ||
Electrical
| Voltage Rating | 100V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.015 | Packaging | Bulk |
| Orientation | Keyed | Termination | Solder Cup |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Insertion Angle | :- |
| Material - Body | :- | Contact Material | :- |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 7 | Contact Termination | :Solder |
| Number of Positions | 7 | Shell Size - Insert | DIN (270 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Gender | :Plug | Series | :C091A |
| Features | Shielded | Product Type | Connectors |
| RF Family/Standard | C091A | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -40°C ~ 100°C |
Documents & Media
Similar Parts
C091 00U000 130 2
Amphenol Tuchel
Circular DIN Connectors CONNECTOR COVER PROTECTIVE CAP PROTECTIVE COVER, FOR MALE RECEPTACLES Protection cover; Series: C091A, C091B, C091D; Mat: metal; -40÷85°C

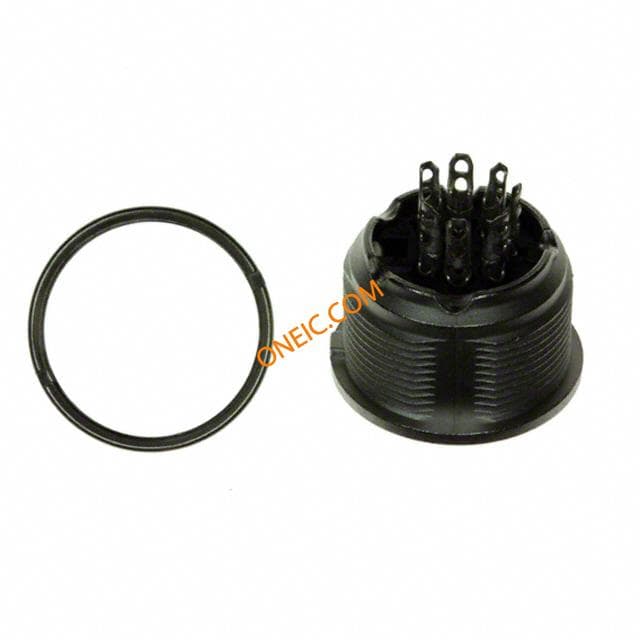

T 3478 000
