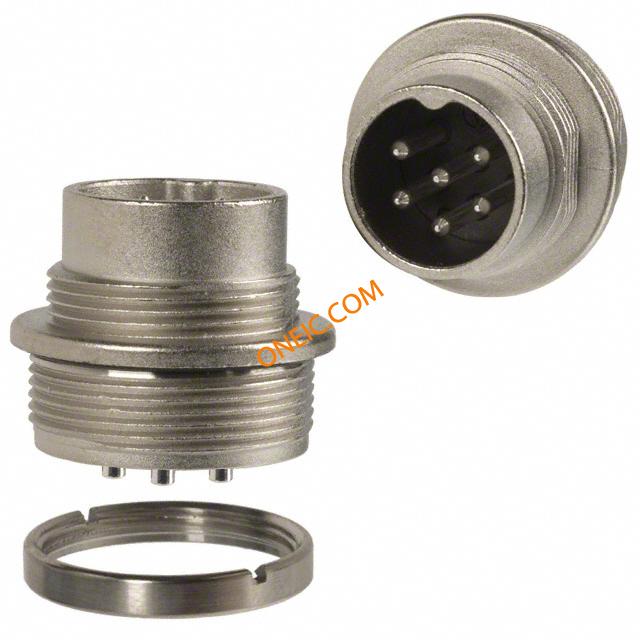

C091 31W006 100 2
| Manufacturer | |
| Description | Circular DIN Connectors 6P DIN PANEL MALE CONN MALE RCPT 6POS FRONT MT connector, circular din, male panel recept, front mt, 6din silver plt pin cont, ip67 Connector: circular; Series: C091D; male; socket; silver plated Appliance plug, C091D 6-pin Poles=6, C091 31W006 100 2, Amphenol |
| Category |
Business
| Part # Aliases | 100 2 31W006 34B7648 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300 V | Number of Poles | 6 |
| Voltage - Supply | DIN | Current Rating (Max) | 5 A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 67 |
Mechanical
| Weight | 0.01 kg | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20-26 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder | Weight (g): | 11.20000 |
| Contact Type | Pin | Body Material | metal |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 4 mm to 6 mm |
| Connector Type | Receptacle, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Mounting Style | for panel mounting, rear side nut | Package / Case | Metal |
| Plating - Body | nickel | Connector Usage | Threaded |
| Locking Feature | threaded joint, external thread | Contact Material | CuZn+Ag |
| Housing Material | Die Cast | Package Quantity | 6 |
| Primary Material | DIN | Connector - Cable | socket |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Dielectric Material | Thermoplastic |
| Number of Positions | 6 | Shell Size - Insert | DIN (240 Degree) |
| 1st Connector Gender | Male | Shell Material, Finish | Die Cast, Nickel Plated |
| Wire Gauge or Range - mm2 | 0.5mm2 | Contact Material - Plating | silver plated |
| 1st Connector Mounting Feature | DIN EN 60130-9 | ||
Product Info
| Spg | 6 | Type | Panel Socket |
| Design | Panel-mount male receptacle | Series | C 091 D |
| Features | Shielded | Main Purpose | Shielded |
| Manufacturer | C091-D Series | Product Type | Connectors |
| Adapter Series | C091D | Number of Units | 1 |
| Connection Method | 0.5 | RF Family/Standard | C091D |
| Output Configuration | Panel Mount | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
C091 00U000 130 2
Amphenol Tuchel
Circular DIN Connectors CONNECTOR COVER PROTECTIVE CAP PROTECTIVE COVER, FOR MALE RECEPTACLES Protection cover; Series: C091A, C091B, C091D; Mat: metal; -40÷85°C
C091 31D006 101 2
amphenol
Conn Circular F 6 POS Solder ST Cable Mount 6 Terminal 1 Port Circular DIN Connectors FEMALE CABLE CONNECTOR 6 WAY CONN PLUG 6POS CABLE SKT CIRCULAR, RECEPTACLE, 6 WAY, CABLE Connector: circular; Series: C091D; female; plug; silver plated
C091 31F006 100 2
Amphenol Tuchel
Circular DIN Connectors FMale 6 Pin R/A cable CONN CIR FMALE 6POS R/A CABLE SOCKET, FREE, R/A, 6WAY CONN CIR FMALE 6POS R/A INLINE connector, circular din, rt angle female cable conn, 6 silver pltd socket cont, ip67

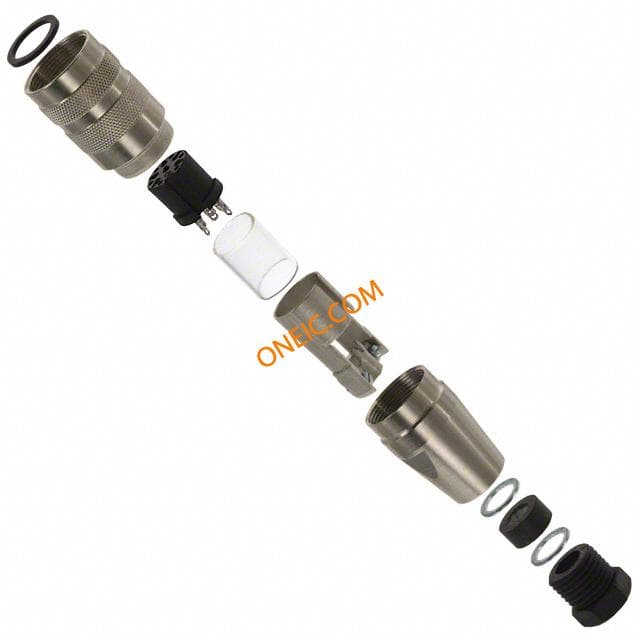

C091 31D006 100 2
