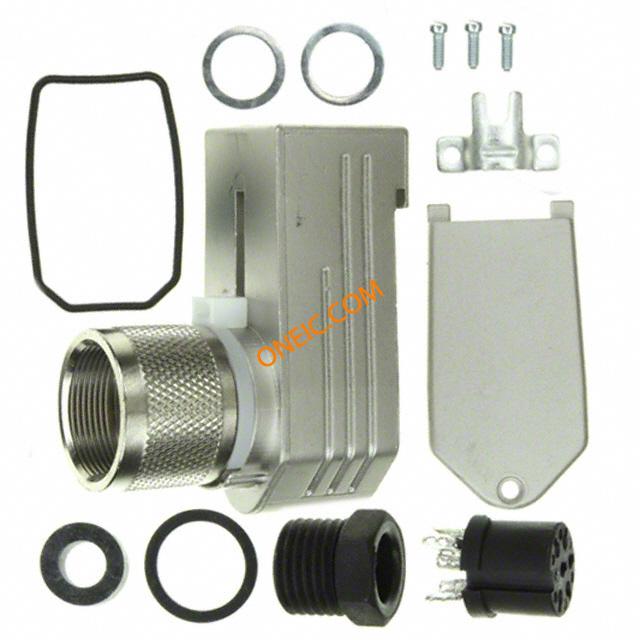

C091 31F006 100 2
| Manufacturer | |
| Description | Circular DIN Connectors FMale 6 Pin R/A cable CONN CIR FMALE 6POS R/A CABLE SOCKET, FREE, R/A, 6WAY CONN CIR FMALE 6POS R/A INLINE connector, circular din, rt angle female cable conn, 6 silver pltd socket cont, ip67 |
| Category |
Business
| Part # Aliases | 100 2 31F006 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85389099 | Approval Agency | :UL |
| Approval Agency Marking | UL Recognized | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 300 V | Voltage - Supply | DIN |
| Voltage - Working | :300V | Contact Resistance | :5mohm |
| Voltage - Breakdown | :1500V | Current Rating (Max) | 5 A |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Weight | 0.064 | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | :0.5mm² |
| Orientation | Keyed | Termination | Solder Cup |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line), Right Angle |
| Shell Plating | Nickel | Angle of Throw | Right |
| Cable Diameter | 4-6 mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Package / Case | Metal |
| Plating - Body | :Nickel | Connector Usage | Threaded |
| Insertion Angle | :- | Material - Body | :Metal |
| Contact Material | :- | Housing Material | Die Cast |
| Primary Material | DIN | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 6 |
| Contact Termination | :Solder | Dielectric Material | Thermoplastic |
| Number of Positions | 6 | Shell Size - Insert | DIN (240 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | 1st Connector Mounting Type | :Cable |
| Diameter - Outside, Non-Expanded | :6mm | ||
Product Info
| Type | Cable Socket | Gender | :Socket |
| Series | :C 091 D | Features | Shielded, Strain Relief |
| Manufacturer | C091-D Series | Product Type | Connectors |
| RF Family/Standard | C091D | ||
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
