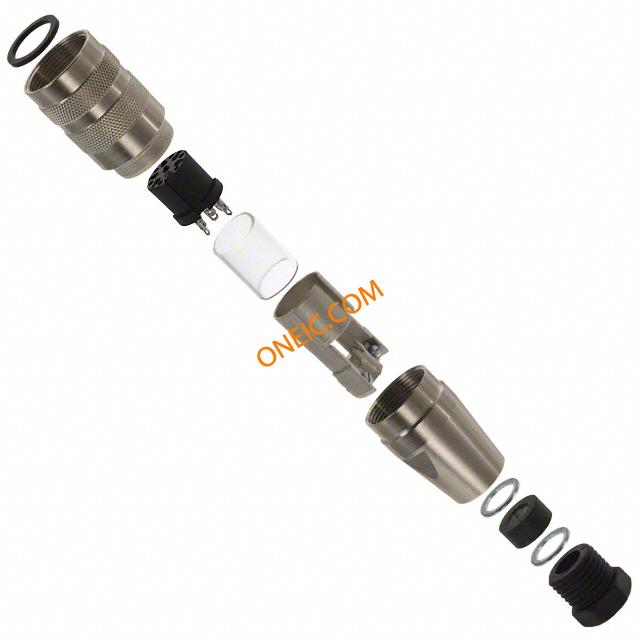

C091 31D006 100 2
| Manufacturer | |
| Description | Circular DIN Connectors 6P DIN CABLE RECPT. CONN PLUG 6POS CABLE SKT CIRCULAR CONNECTOR RECEPTACLE 6POS CABLE CONN PLUG 6POS INLINE SKT connector, circular din, str female cableconn, 6din silver-pltd solder cont, ip67 Connector: circular; Series: C091D; female; plug; silver plated Cable box, 6-pin Poles=6, C091 31D006 100 2, Amphenol |
| Category |
Business
| Part # Aliases | 100 2 31D006 34B7564 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Standards | UL E63093 |
| Tariff No | 85369010 | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.036 | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20-26 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Weight (g): | 38.40000 |
| Contact Type | Socket | Body Material | metal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 4 mm to 6 mm |
| Connector Type | Plug, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Mounting Style | Wire | Package / Case | Metal |
| Plating - Body | nickel | Connector Usage | Threaded |
| Insertion Angle | :- | Locking Feature | threaded joint, internal thread |
| Material - Body | :Brass | Housing Material | Die Cast |
| Package Quantity | 30 | Primary Material | DIN |
| Size / Dimension | see | Connector - Cable | plug |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Dielectric Material | Thermoplastic |
| Number of Positions | 6 | Shell Size - Insert | DIN (240 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | Wire Gauge or Range - mm2 | 0.5mm2 |
| Contact Material - Plating | silver plated | 1st Connector Mounting Type | :Cable |
| 1st Connector Mounting Feature | DIN EN 60130-9 | ||
Product Info
| Spg | 30 | Type | Cable Socket |
| Gender | :Receptacle | Series | :C 091 D |
| Features | Shielded, Strain Relief | Manufacturer | C091-D Series |
| Product Type | Connectors | Adapter Series | C091D |
| Number of Units | 1 | RF Family/Standard | C091D |
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
C091 31W006 100 2
Amphenol Tuchel
Circular DIN Connectors 6P DIN PANEL MALE CONN MALE RCPT 6POS FRONT MT connector, circular din, male panel recept, front mt, 6din silver plt pin cont, ip67 Connector: circular; Series: C091D; male; socket; silver plated Appliance plug, C091D 6-pin Poles=6, C091 31W006 100 2, Amphenol
C091 31H006 100 2
amphenol
Conn Circular M 6 POS Solder ST Cable Mount 6 Terminal 1 Port CONN PLUG CABLE 6POS STR SOLDER Circular DIN Connectors 6P DIN CABLE PLUG CIRCULAR CONNECTOR, PLUG, 6POS, CABLE CONN PLUG INLINE 6POS STR SOLDER connector, circular din, str male cable conn, 6din silver pltd solder contact, ip67 Connector: circular; Series: C091D; male; plug; silver plated; IP67 Cable connector, 6-pin Poles=6, C091 31H006 100 2, Amphenol

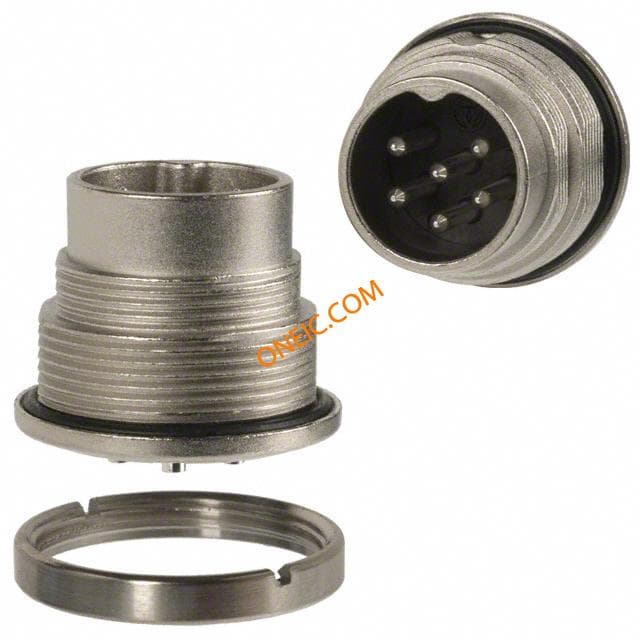

C091 31C006 100 2
