C091 31H006 100 2
| Manufacturer | |
| Description | Conn Circular M 6 POS Solder ST Cable Mount 6 Terminal 1 Port CONN PLUG CABLE 6POS STR SOLDER Circular DIN Connectors 6P DIN CABLE PLUG CIRCULAR CONNECTOR, PLUG, 6POS, CABLE CONN PLUG INLINE 6POS STR SOLDER connector, circular din, str male cable conn, 6din silver pltd solder contact, ip67 Connector: circular; Series: C091D; male; plug; silver plated; IP67 Cable connector, 6-pin Poles=6, C091 31H006 100 2, Amphenol |
| Category |
Business
| Part # Aliases | 100 2 31H006 34B7594 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | Standards | UL E63093 |
| Tariff No | 85366910 | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Release Range | Yes | Voltage Rating | 300V |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
Mechanical
| Length | 57 | Weight | 0.036 |
| End Style | Solder | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20-26 |
| Orientation | Straight | Shell Style | Plug |
| Termination | Solder | Weight (g): | 35.60000 |
| Contact Form | 6Signal | Contact Type | Pin |
| Body Material | metal | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 4 mm to 6 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Wire |
| Package / Case | Metal | Plating - Body | nickel |
| Connector Usage | Threaded | Insertion Angle | :- |
| Locking Feature | threaded joint, external thread | Material - Body | :- |
| Housing Material | Die Cast | Package Quantity | 5 |
| Primary Material | DIN | Size / Dimension | see |
| Connector - Cable | plug | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | 18 |
| Number of Contacts | 6 | Dielectric Material | Thermoplastic |
| Number of Positions | 6 | Shell Size - Insert | DIN (240 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | Wire Gauge or Range - mm2 | 0.5mm2 |
| Contact Material - Plating | silver plated | 1st Connector Mounting Type | :Cable |
| 1st Connector Mounting Feature | DIN EN 60130-9 | ||
Product Info
| Spg | 5 | Type | Circular |
| Gender | :Plug | Series | :C 091 D |
| Features | Shielded, Strain Relief | Manufacturer | C091-D Series |
| Product Type | Connectors | Adapter Series | C091D |
| Number of Units | 1 | RF Family/Standard | C091D |
| Assembly Configuration | Cable Mount | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
C091 00U000 120 2
Amphenol Tuchel
Circular DIN Connectors AUDIO DIN DUST CAP PROTECTIVE CAP CAP, FREE, PLUG Protection cover; Series: C091A, C091B, C091D; Mat: metal; -40÷85°C
C091 11G006 000 2
Amphenol Tuchel
Circular DIN Connectors 6 POS FEMALE RECPT CRIMP; IP67 CONN RCPT 6POS PNL MNT SKT CRIMP

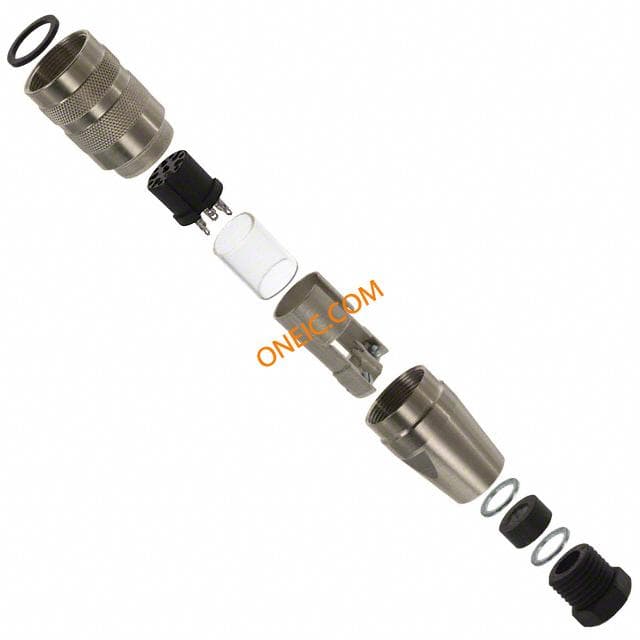

C091 31D006 100 2
Amphenol Tuchel
Circular DIN Connectors 6P DIN CABLE RECPT. CONN PLUG 6POS CABLE SKT CIRCULAR CONNECTOR RECEPTACLE 6POS CABLE CONN PLUG 6POS INLINE SKT connector, circular din, str female cableconn, 6din silver-pltd solder cont, ip67 Connector: circular; Series: C091D; female; plug; silver plated Cable box, 6-pin Poles=6, C091 31D006 100 2, Amphenol

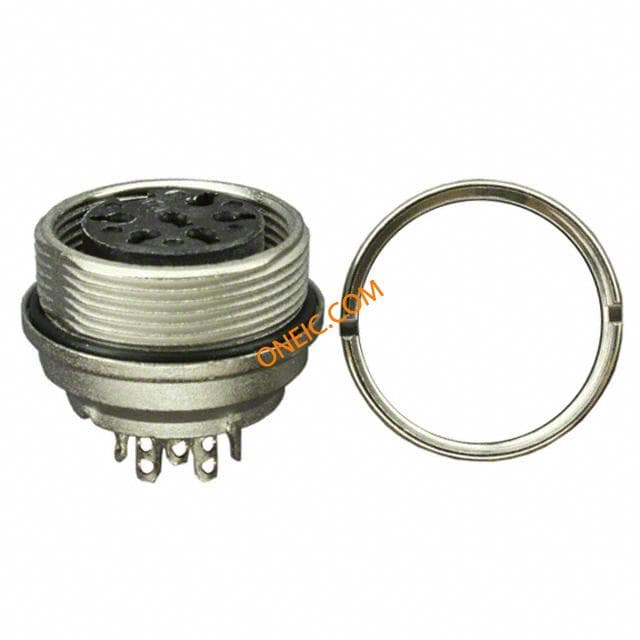

C091 31G006 100 2
