C091 31D005 100 2
| Manufacturer | |
| Description | Circular DIN Connectors 5P DIN CABLE RECPT. Conn Circular F 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS CABLE SKT CIRCULAR CONNECTOR RECEPTACLE 5POS CABLE CONN PLUG 5POS INLINE SKT connector, circular din, str female cableconn, 5din silver-pltd solder cont, ip67 Connector: circular; Series: C091D; female; plug; silver plated Cable box, 5-pin Poles=5, C091 31D005 100 2, Amphenol |
| Category |
Business
| Part # Aliases | 100 2 31D005 34B7562 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | UL E63093 | Tariff No | 85366910 |
| Approval Agency Marking | UL Recognized | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.041 | Diameter | 18 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Shell Style | Plug | Termination | Solder |
| Weight (g): | 13.60000 | Contact Type | 5Signal |
| Body Material | metal | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 4 mm to 6 mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Wire |
| Package / Case | Metal | Plating - Body | nickel |
| Connector Usage | Threaded | Insertion Angle | :- |
| Locking Feature | threaded joint, internal thread | Material - Body | :Brass |
| Housing Material | Die Cast | Length - Overall | 58 |
| Package Quantity | 50 | Primary Material | DIN |
| Size / Dimension | see | Connector - Cable | plug |
| Termination Style | Solder | 1st Contact Gender | F |
| Number of Contacts | 5 | Dielectric Material | Thermoplastic |
| Number of Positions | 5 | Shell Size - Insert | DIN (240 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | Wire Gauge or Range - mm2 | 0.5mm2 |
| Contact Material - Plating | silver plated | 1st Connector Mounting Type | :Cable |
| 1st Connector Mounting Feature | DIN EN 60130-9 | ||
Product Info
| Spg | 50 | Type | Circular |
| Gender | :Receptacle | Series | :C 091 D |
| Features | Shielded, Strain Relief | Manufacturer | C091-D Series |
| Product Type | Connectors | Adapter Series | C091D |
| Number of Units | 1 | RF Family/Standard | C091D |
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts

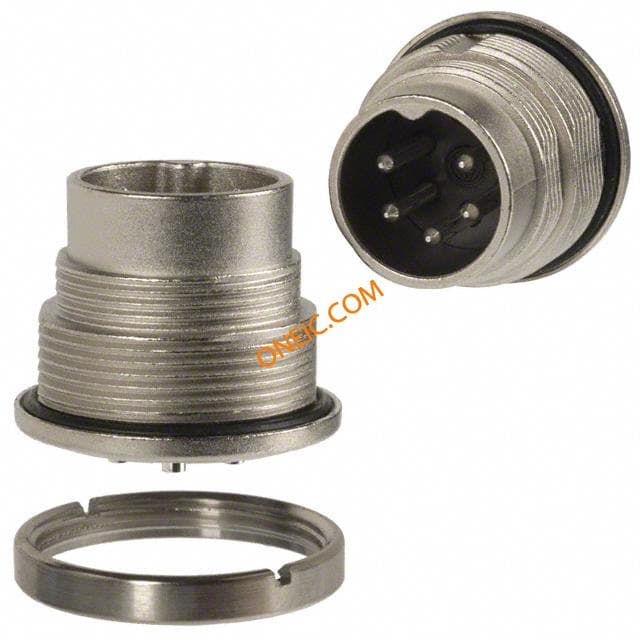

C091 31C005 100 2
amphenol
Conn Circular M 5 POS Solder ST Panel Mount 5 Terminal 1 Port 05P 091D CIRCULAR CONNECTOR CONN MALE RCPT 5POS REAR MT C091D Rear Panel Mount 5 way pin Solder Circular DIN Connectors Plug 5 Pin Rear MT solder

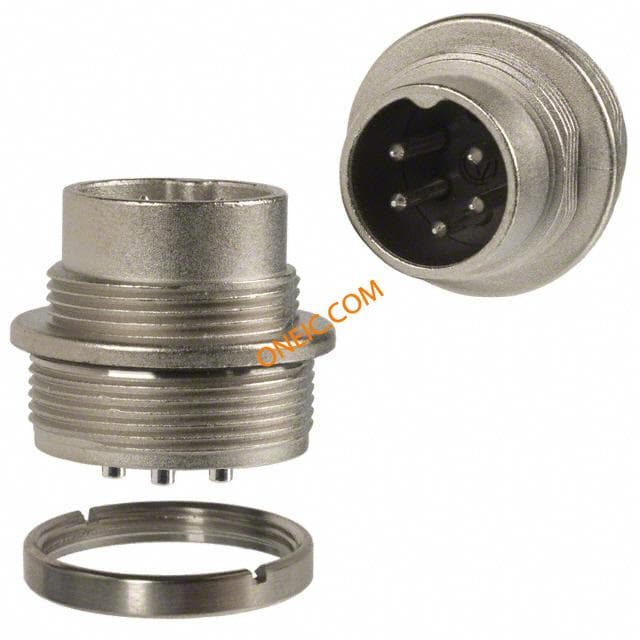

C091 31W005 100 2
Amphenol Tuchel
Circular DIN Connectors 5P DIN PANEL MALE Conn Circular M 5 POS Solder ST Panel Mount 5 Terminal 1 Port CONN MALE RCPT 5POS FRONT MT connector, circ din, male panel recept, front mt, 5 din silver pltd pin cont, ip67 Connector: circular; Series: C091D; male; socket; silver plated Appliance plug, C091D 5-pin Poles=5, C091 31W005 100 2, Amphenol

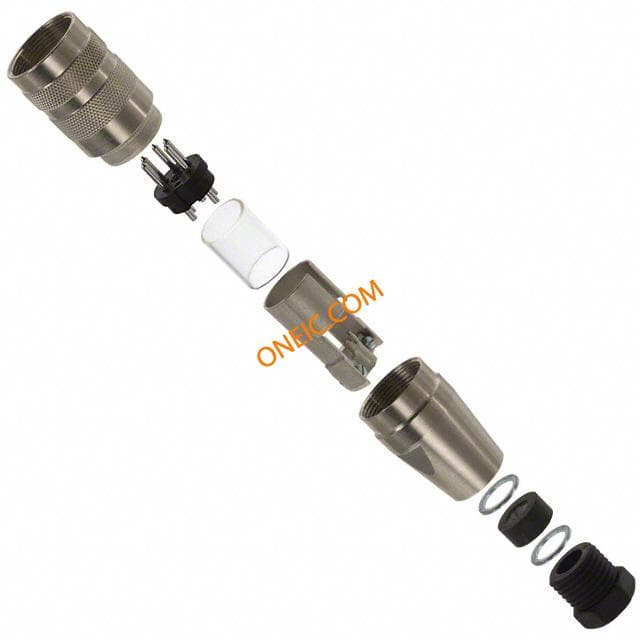

C091 31H005 100 2
