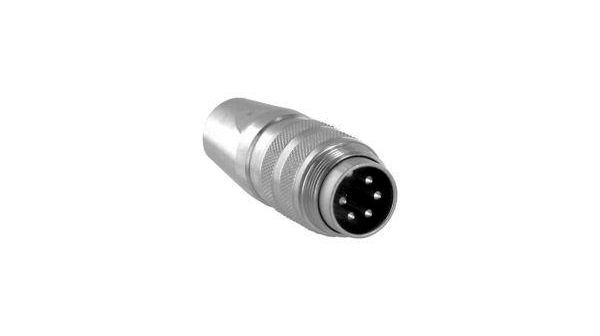

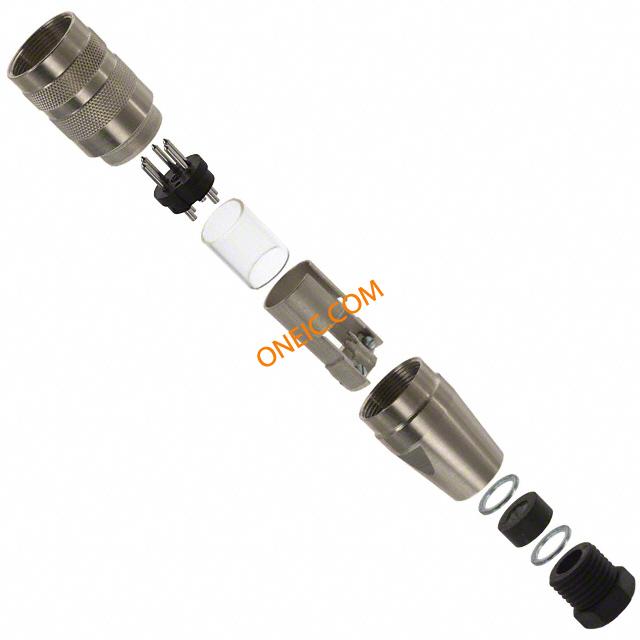

C091 31H005 100 2
| Manufacturer | |
| Description | Circular DIN Connectors 5P Straight Male Cable Connector Conn Circular M 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN PLUG CABLE 5POS STR SOLDER CIRCULAR CONNECTOR, PLUG, 5POS, CABLE CONN PLUG INLINE 5POS STR SOLDER connector, circular din, str male cable conn, 5din silver pltd solder contact, ip67 Connector: circular; Series: C091D; male; plug; silver plated; IP67 Cable connector, 5-pin Poles=5, C091 31H005 100 2, Amphenol |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 100 2 31H005 34B7592 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | UL E63093 | Tariff No | 85366910 |
| Approval Agency Marking | UL Recognized | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.032 | Diameter | 18 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Shell Style | Plug | Termination | Solder |
| Weight (g): | 35.60000 | Contact Type | 5Signal |
| Body Material | metal | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 4 mm to 6 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Wire |
| Package / Case | Metal | Plating - Body | nickel |
| Connector Usage | Threaded | Insertion Angle | :- |
| Locking Feature | threaded joint, external thread | Material - Body | :- |
| Housing Material | Die Cast | Length - Overall | 57 |
| Package Quantity | 50 | Primary Material | DIN |
| Size / Dimension | see | Connector - Cable | plug |
| Termination Style | Solder | 1st Contact Gender | M |
| Number of Contacts | 5 | Dielectric Material | Thermoplastic |
| Number of Positions | 5 | Shell Size - Insert | DIN (240 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | Wire Gauge or Range - mm2 | 0.5mm2 |
| Contact Material - Plating | silver plated | 1st Connector Mounting Type | :Cable |
| 1st Connector Mounting Feature | DIN EN 60130-9 | ||
Product Info
| Spg | 50 | Type | Circular |
| Gender | :Plug | Series | :C 091 D |
| Features | Shielded, Strain Relief | Manufacturer | C091-D Series |
| Product Type | Connectors | Adapter Series | C091D |
| Number of Units | 1 | RF Family/Standard | C091D |
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
