C091 31W005 100 2
| Manufacturer | |
| Description | Circular DIN Connectors 5P DIN PANEL MALE Conn Circular M 5 POS Solder ST Panel Mount 5 Terminal 1 Port CONN MALE RCPT 5POS FRONT MT connector, circ din, male panel recept, front mt, 5 din silver pltd pin cont, ip67 Connector: circular; Series: C091D; male; socket; silver plated Appliance plug, C091D 5-pin Poles=5, C091 31W005 100 2, Amphenol |
| Category |
Business
| Part # Aliases | 100 2 31W005 34B7647 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | 250 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency Marking | UL Recognized | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300V | Number of Poles | 5 |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 67 |
Mechanical
| Weight | 0.01 kg | Diameter | 20 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Weight (g): | 11.20000 | Contact Type | 5Signal |
| Body Material | metal | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 4 mm to 6 mm | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Flange |
| Package / Case | Metal | Plating - Body | nickel |
| Connector Usage | Threaded | Locking Feature | threaded joint, external thread |
| Panel Thickness | max 3.5mm | Contact Material | CuZn+Ag |
| Housing Material | Die Cast | Length - Overall | 17.8 |
| Package Quantity | 10 | Primary Material | DIN |
| Connector - Cable | socket | Termination Style | Solder |
| 1st Contact Gender | M | Number of Contacts | 5 |
| Dielectric Material | Thermoplastic | Number of Positions | 5 |
| Shell Size - Insert | DIN (240 Degree) | 1st Connector Gender | Male |
| Shell Material, Finish | Die Cast, Nickel Plated | Wire Gauge or Range - mm2 | 0.5mm2 |
| Contact Material - Plating | silver plated | 1st Connector Mounting Feature | DIN EN 60130-9 |
Product Info
| Spg | 10 | Type | Circular |
| Design | Panel-mount male receptacle | Gender | RCP |
| Series | C 091 D | Features | Shielded |
| Manufacturer | C091-D Series | Product Type | Connectors |
| Adapter Series | C091D | Number of Units | 1 |
| Connection Method | 0.5 | RF Family/Standard | C091D |
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
C091 11D005 000 2
Amphenol Tuchel
Circular DIN Connectors 5 CONTACT;ST;METAL; 300V CRIMP TERM CONN PLUG 5POS CABLE SKT CRIMP
C091 00U000 130 2
Amphenol Tuchel
Circular DIN Connectors CONNECTOR COVER PROTECTIVE CAP PROTECTIVE COVER, FOR MALE RECEPTACLES Protection cover; Series: C091A, C091B, C091D; Mat: metal; -40÷85°C
C091 31F005 100 2
Amphenol Tuchel
Circular DIN Connectors FMale 5 Pin R/A cable CONN CIR FMALE 5POS R/A CABLE CONN CIR FMALE 5POS R/A INLINE

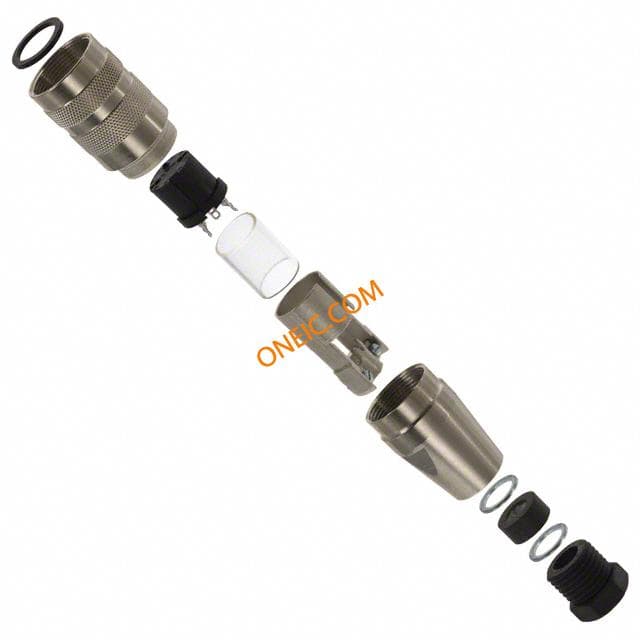

C091 31D005 100 2
