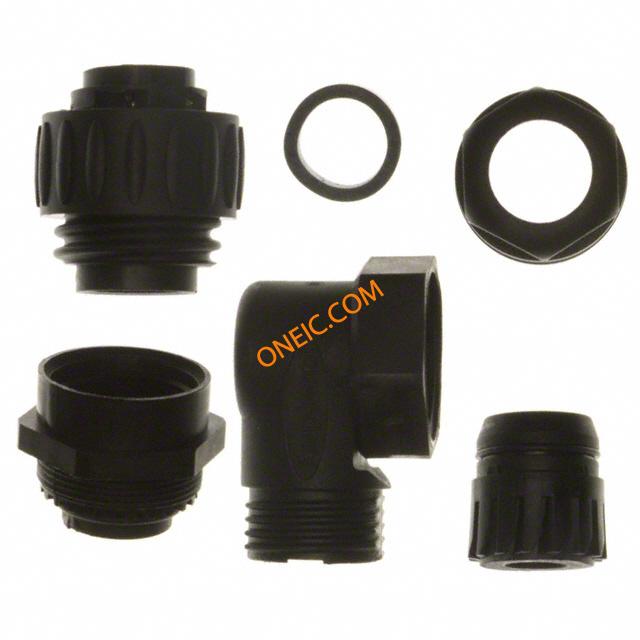

C016 20K003 100 12
| Manufacturer | |
| Description | Circular DIN Connectors 3+PE MALE R/A BLK SCREW SILVER CONTACT CONN MALE PLUG 3+PE R/A SLV BLK 4 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Male Contacts connector, plastic circ, rt angle male cable conn, 3+pe silver plt, screw term, black Cable connector, 90° 3+PE, C016 20K003 100 12, Amphenol Amphenol Eco-Mate 系列 4路 电缆安装 直角 连接器 插头 , 公触点 |
| Category |
Business
| Part # Aliases | 81K1484 | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 400V | Number of Poles | 3+PE |
| Voltage - Supply | DIN | Current Rating (Max) | 16A |
| Current Rating - Appliance Inlet | 16 | Voltage - Protection Level (VP) (2416) | IP 67 |
Mechanical
| Color | Black | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | 20-14 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Screw | Weight (g): | 48.00000 |
| Contact Type | Pin | Mounting Type | Free Hanging (In-Line), Right Angle |
| Angle of Throw | Right | Cable Diameter | 6 mm to 12.5 mm |
| Cable End Type | 6...12.5 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | Plastic |
| Connector Style | angled | Connector Usage | Threaded |
| Locking Feature | Screw locking | Contact Material | silver-plated |
| Housing Material | Polyamide | Primary Material | DIN |
| Termination Rows | 螺钉拧紧 | Termination Style | Screw |
| 1st Contact Gender | Male | Color - Connectors | black |
| Number of Contacts | 4 | Dielectric Material | Polyamide |
| Number of Positions | 4 | 1st Connector Gender | Male |
| Shell Material, Finish | Polyamide | Contact Layout, Typical | 3 + 1 Ground (PE) |
| Static Discharge Shielding | 是 | ||
Product Info
| Type | Cable Plug | Gender | Male |
| Series | eco mate | Features | Cable Clamp |
| Main Purpose | Cable Clamp | Manufacturer | C016 Series |
| Product Type | Connectors | Connection Method | 2.5 |
| Output Configuration | Free Hanging (In-Line), Right Angle | Application Specifics | Commercial |
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
C016 00U000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR MALE CABLE CONNECTOR COVER FOR EQUIPMENT BOX 25,5 CONN CAP FOR MALE PLUG BLACK EcoMateCap for Male Cable Conn DUST CAP, FOR MALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate male cable conn, black Protection cover; Series: ECOMATE (C016); IP65,IP67 Sealing cap for cable plug, C016 00U000 010 12, Amphenol Amphenol Eco-Mate 系列 插座 IP65 防尘盖

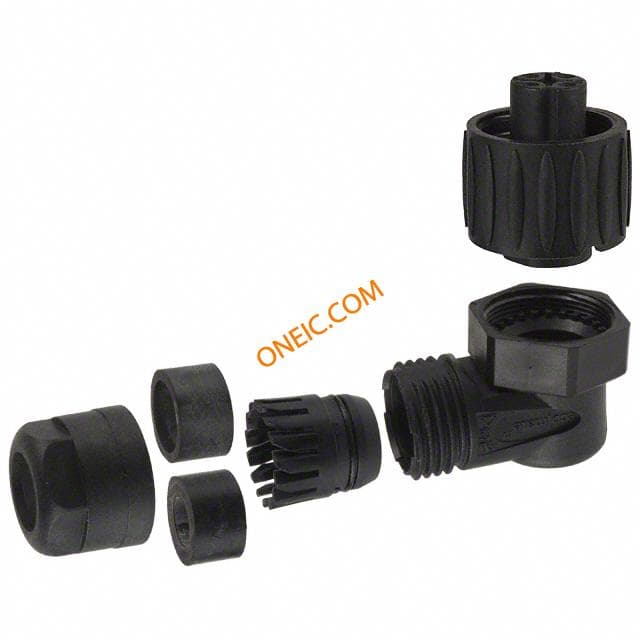

C016 20F003 100 12
