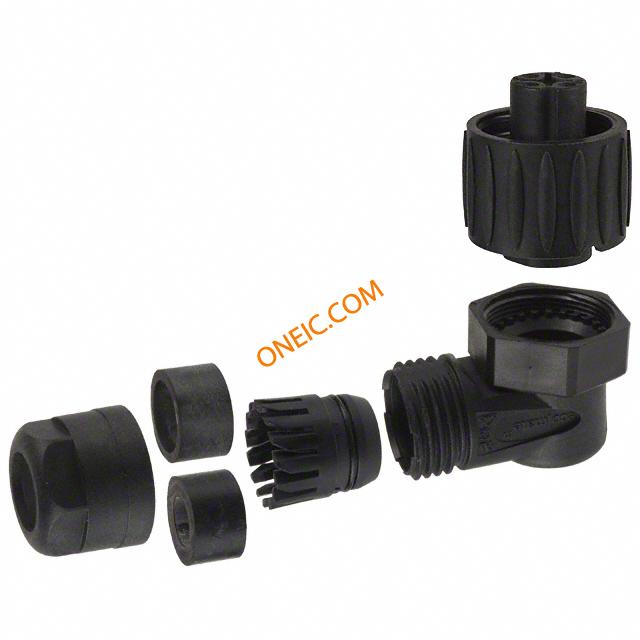

C016 20F003 100 12
| Manufacturer | |
| Description | Circular DIN Connectors 3+PE FEM R/A BLK SCREW SILVER CONTACT CONN FMLE PLUG 3+PE R/A SCRW AG SOCKET, FREE, R/A, ECOMATE, 3+PE CIRCULAR, RECEPTACLE, R/A, 6+PE, CABLE connector, plastic circ, rt angle fem cable conn, 3+gnd silver plt, screw term, black Connector: circular; plug; female; Series: ECOMATE (C016); PIN:4 Cable socket, 90° 3+PE, C016 20F003 100 12, Amphenol Amphenol Eco-Mate 系列 3 + PE路 电缆安装 直角 连接器 插座 |
| Category |
Business
| Part # Aliases | 81K1472 | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 400V | Voltage - Supply | DIN |
| Current Rating (Max) | 16A | ||
Mechanical
| Color | Black | Weight | 0.04 |
| Packaging | Bulk | Wire Gauge | 20-14 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Weight (g): | 48.66700 |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line), Right Angle |
| Angle of Throw | Right | Cable Diameter | 6 mm to 12.5 mm |
| Connector Type | Plug, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Package / Case | Plastic | Connector Usage | Threaded |
| Insertion Angle | :- | Locking Feature | threaded joint, internal thread |
| Material - Body | :Nylon 6.6 (Polyamide 6.6) | Contact Material | :- |
| Housing Material | Polyamide | Package Quantity | 50 |
| Primary Material | DIN | Connector - Cable | plug |
| Termination Style | Screw | 1st Contact Gender | Socket (Female) |
| Color - Connectors | black | Number of Contacts | 3 |
| Contact Termination | :Screw | Dielectric Material | Polyamide |
| Number of Positions | 4 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Contact Layout, Typical | 3 + 1 Ground (PE) |
| Contact Material - Plating | silver plated | 1st Connector Mounting Type | :Cable |
| 1st Connector Mounting Feature | 3+PE | ||
Product Info
| Spg | 50 | Type | Cable Socket |
| Gender | :Socket | Series | eco mate |
| Features | Cable Clamp | Manufacturer | C016 Series |
| Product Type | Connectors | Adapter Series | ECOMATE (C016) |
| Number of Units | 1 | Application Specifics | Commercial |
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
