T 3302 400

Manufacturer	Amphenol Corporation
Description	CONN RCPT 4POS PANEL MNT TH PIN connector, circular din, male panel recept, rear mount, 4IEC, ring nut
Category	Connector SolutionsCircular ConnectorsMilitary Circular Connectors

对参数有疑问？问 AI 助手

Business

Other Names

T3302400

Standard Package

105

Compliance

RoHS	RoHS Compliant Part	Approval Agency Marking	UL Recognized/IEC
Material Flammability Rating	UL94-V0

Electrical

Voltage Rating	300V	Contact Resistance	mΩ
Current Rating (Max)	5A

Mechanical

Packaging	Bulk	Cable Exit	Internal
Wire Gauge	26-20 AWG	Orientation	Keyed
Termination	Solder	Contact Type	Pin
Mounting Type	Panel Mount; Through Hole	Angle of Throw	Straight
Connector Type	Receptacle, Male Pins	Contact Finish	Silver
Fastening Type	Threaded	Housing Finish	Nickel
Package / Case	Metal	Connector Usage	Threaded
Housing Material	Die Cast, Nickel Plated	Primary Material	DIN
Number of Contacts	4 DIN	Dielectric Material	Thermoplastic
Number of Positions	4	Shell Size - Insert	DIN (210 Degree)
Shell Material, Finish	Die Cast, Nickel Plated

Product Info

Type	Panel Plug	Gender	Male
Features	Shielded	Manufacturer	C091-A Series

Environmental

Seal Rating	IP 40	Ingress Protection	IP40
Temperature Rating	–40°C to +100°C C	Operating Temperature	-40°C ~ 100°C

Documents & Media

PDF Document

C091 A,B,D Series Catalog

Similar Parts

C091 00U000 130 2

Amphenol Tuchel

Circular DIN Connectors CONNECTOR COVER PROTECTIVE CAP PROTECTIVE COVER, FOR MALE RECEPTACLES Protection cover; Series: C091A, C091B, C091D; Mat: metal; -40÷85°C

$36.2400

Details

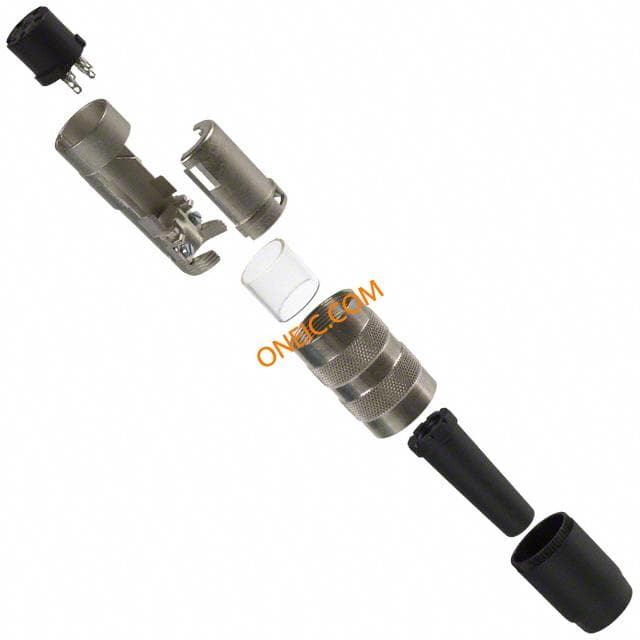

T 3301 001
