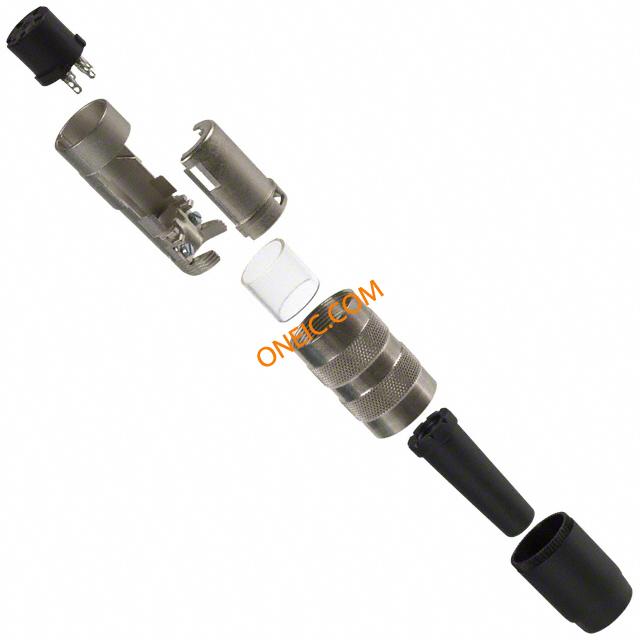

T 3301 001
| Manufacturer | |
| Description | Circular DIN Connectors 4P IEC CABLE RECPT. CONN CIR FEMALE 4POS CBL MNT T 3301 001 connector, circular din, str female cableconn, 4iec silver-pltd solder cont, ip40 Cable box, C091A 4-pin Poles=4, T 3301 001, Amphenol |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 001 3301 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300V | Number of Poles | 4 |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 40 |
Mechanical
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Termination | Solder Cup | Contact Type | Socket |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 3-6 mm |
| Cable End Type | 3...6 mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Wire |
| Package / Case | Metal | Connector Usage | Threaded |
| Locking Feature | M16 x 0.75 screw locking | Contact Material | CuZn+Ag |
| Housing Material | Die Cast | Primary Material | DIN |
| Termination Style | Crimp / Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 4 | Dielectric Material | Thermoplastic |
| Number of Positions | 4 | Shell Size - Insert | DIN (210 Degree) |
| 1st Connector Gender | Female | Shell Material, Finish | Die Cast, Nickel Plated |
Product Info
| Type | Cable Socket | Design | Cable socket |
| Gender | Female | Series | C 091 A |
| Features | Shielded, Strain Relief | Manufacturer | C091-A Series |
| Product Type | Connectors | Connection Method | 0.5 |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
