点击放大查看
T 3301 005
| Manufacturer | |
| Description | CONN PLUG 4POS CABLE RA SKT Connector: circular; Series: C091A; female; plug; silver plated |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | T3301005 | Standard Package | 50 |
Compliance
| Standards | UL E63093 | ||
Electrical
| Voltage Rating | 300V | Current Rating (Max) | 5A |
Mechanical
| Weight | 0.04 kg | Packaging | Bulk |
| Orientation | Keyed | Termination | Solder Cup |
| Mounting Type | Free Hanging (In-Line), Right Angle | Cable Diameter | 4...6mm |
| Connector Type | Plug, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Mounting Style | for cable |
| Locking Feature | threaded joint, internal thread | Size / Dimension | see |
| Connector - Cable | plug | Number of Positions | 4 |
| Shell Size - Insert | DIN (210 Degree) | Shell Material, Finish | Die Cast, Nickel Plated |
| Contact Material - Plating | silver plated | 1st Connector Mounting Feature | DIN EN 60130-9 |
Product Info
| Features | Shielded, Strain Relief | Adapter Series | C091A |
| Number of Units | 1 | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -40°C ~ 100°C |
Documents & Media
PDF Document
Similar Parts

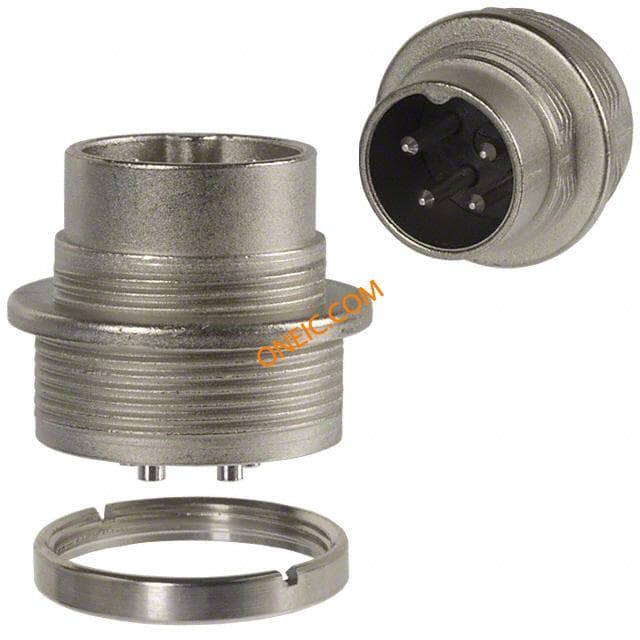

T 3302 000
Amphenol Tuchel
Circular DIN Connectors C091A ST REC PLG 4P CONN CIR RCPT MALE 4POS PNL MNT CONNECTOR, CIRCULAR, RCPT, 4POS, PANEL Appliance plug, C091A 4-pin Poles=4, T 3302 000, Amphenol
$27.1800
Details

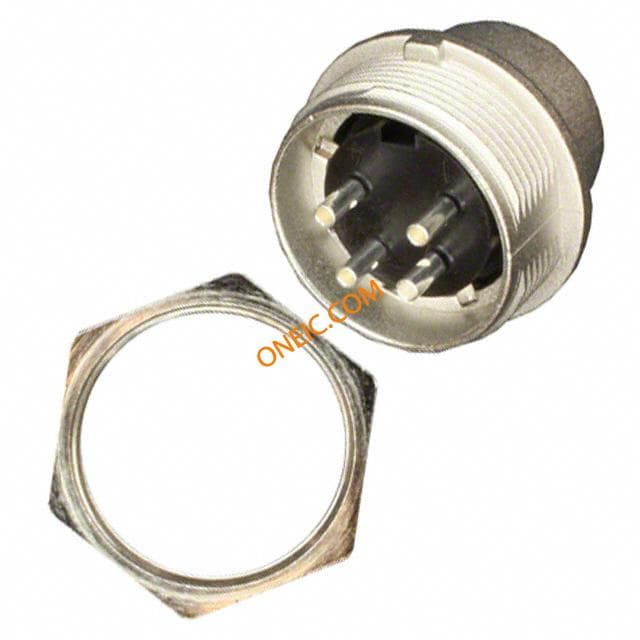

T 3302 009
