31-315-RFX
| Manufacturer | |
| Description | RF Connectors SRT CRMP PLG 174 316 CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc commercial str plug;crimp-crimp;rg174;188;316;50 ohm RF Connectors / Coaxial Connectors SRT CRMP PLG 174 316 Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP |
| Category |
Business
| Product | Connectors | Part # Aliases | 031-315-RFX 16R0577 713-9015 93F1416 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 1 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Compliant | Tariff No | 85366910 |
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Coupling Factor | Bayonet | Frequency - Max | 4GHz |
Mechanical
| Weight | 0.337572 oz | Packaging | Bulk |
| Cable Type | RG-174/U, RG-188/U, RG-316/U | Body Finish | Nickel |
| Cable Group | RG-174, 188A, 316 | Orientation | Straight |
| Weight (g): | 10.00000 | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Connector Style | BNC, RFX |
| Contact Material | Brass | Termination Style | Cable - Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | Straight |
Product Info
| Gender | Plug | Polarity | Standard |
| RF Family/Standard | BNC | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | -55°C ~ 85°C |
Documents & Media
Similar Parts
CTL-2
amphenol
Quick Crimp Tool For Bnc And Tnc Crimp Plugs 2 And3 PC Types Crimpers CRIMP TOOL HEX SZ .178 .324 .068 CRIMP TOOL RG-174, BELDEN 8281 CRIMP TOOL tool, ratcheted hand crimp tool w/die set, cavities: .178, .324, .068 (see notes) Hex crimp tool with dies
31-317
amphenol
Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold connector;rf coaxial;bnc straight jack;crimp-crimp;for rg174;188;316 cable;50ohm RF Connectors / Coaxial Connectors SRT JCK RG316/174

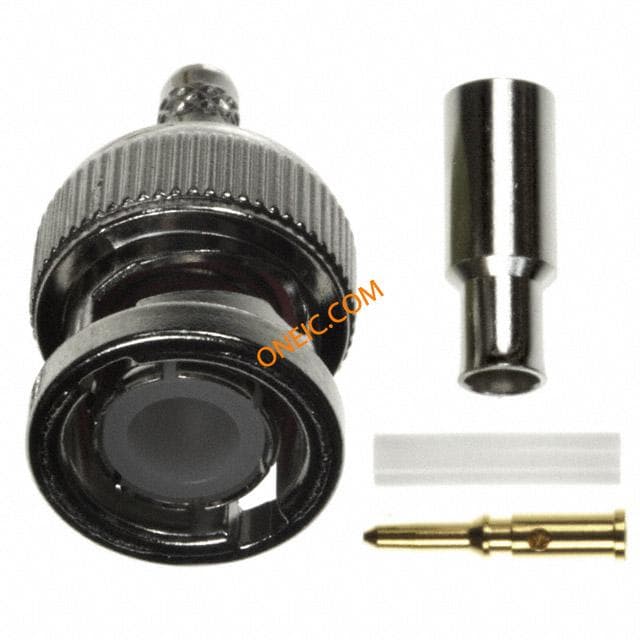

112134
