| Manufacturer | |
| Description | RF Connectors BNC ST PLUG 316/174 Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;rg174;316;LMR100;50 ohm RF Connectors / Coaxial Connectors BNC ST PLUG 316/174 RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, rg174, 316, LMR100, 50 ohm |
| Category |
Business
| Product | Connectors | Other Names | ACX1006 |
| Part # Aliases | 319-0006 87H5613 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Frequency | 0 to 4G | Impedance | 50 Ohm |
| Voltage Rating | 500V | Coupling Factor | Bayonet |
| Frequency - Max | 4GHz | ||
Mechanical
| Weight | 0.336514 oz | Diameter | 14.5 |
| Packaging | Bulk | Cable Type | RG-174, RG-188A, RG-316, Belden 7805A |
| Body Finish | Nickel | Cable Group | RG-174, 316, LMR-100 |
| Orientation | Straight | Termination | Crimp |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Plating - Body | Nickel | Connector Style | BNC |
| Connector Usage | Bayonet | Contact Material | Brass |
| Housing Material | Brass | Length - Overall | 25 |
| Primary Material | BNC | Termination Style | Cable - Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal | Insulation Material | Delrin |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Straight | ||
Product Info
| Type | BNC | Gender | PL |
| Features | Captivated Contact | Polarity | Standard |
| Connection Type | Flexible Cable | RF Family/Standard | BNC |
| Application Specifics | Commercial | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | - 40 C to + 155 C |
Documents & Media
Similar Parts
112713
amphenol connex
Connector Accessories BNC Female Cap With Chain Brass Nickel Finish CONN BNC FEMALE CAP W/CHAIN connector accessory;rf coaxial;bnc female cap and 100mm chain;for plugs RF Connector Accessories BNC JACK CAP AND CHAIN CAP, BNC COAXIAL CONNECTOR
47-10150
Amphenol Connex
Crimpers CRIMP TOOL W/DIE .178/.128/.068 TOOL CRIMP W/DIES .178/.128/.068 tool;ratcheted hand crimp tool w/die set;cavities: .178;.128;.068 (see notes) Crimp Tool With Die CRIMP TOOL W/DIE SET, RATCHET,COAXIAL CABLE tool, ratcheted hand crimp tool w/die set, cavities: .178, .128, .068 (see notes)
47-20004
amphenol connex
Crimp Die Set Punches & Dies CRIMP DIE .178/ .128/.068 TOOL DIE SET .178/.128/.068 DIE FOR RG174, MINI 59 BNC/TNC
112445
Amphenol Connex

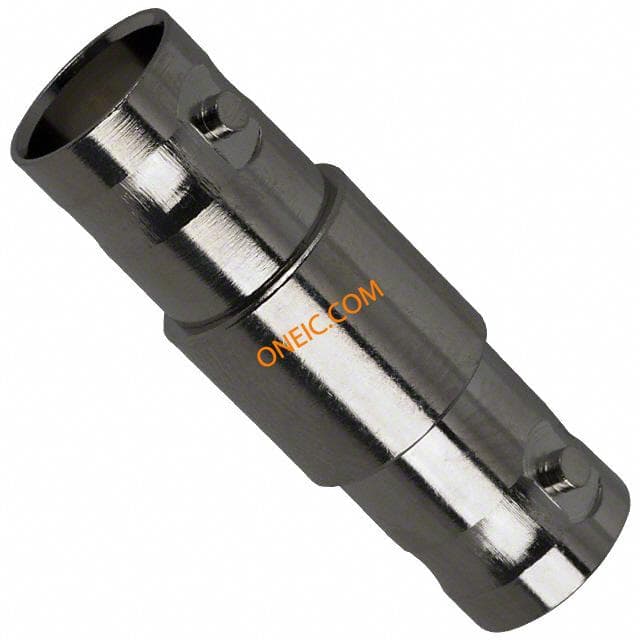

RF Adapters - In Series BNC JACK TO JACK ADAPTER Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Gold CONN BNC ADAPT JACK-JACK 50 OHM connector;rf coaxial;bnc in-series adapter;straight jack to jack;50 ohm RF/COAXIAL ADAPTER, BNC JACK-BNC JACK connector, rf coaxial, bnc in-series adapter, straight jack to jack, 50 ohm

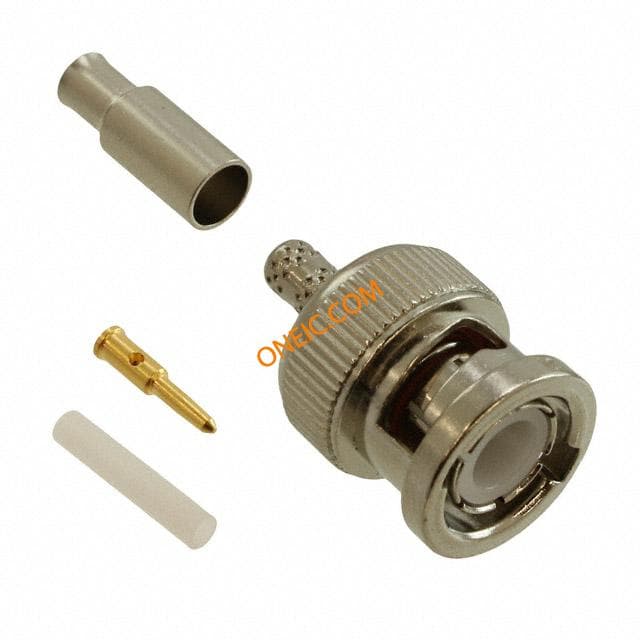

31-315-RFX
Amphenol RF
RF Connectors SRT CRMP PLG 174 316 CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc commercial str plug;crimp-crimp;rg174;188;316;50 ohm RF Connectors / Coaxial Connectors SRT CRMP PLG 174 316 Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP
112144
amphenol connex

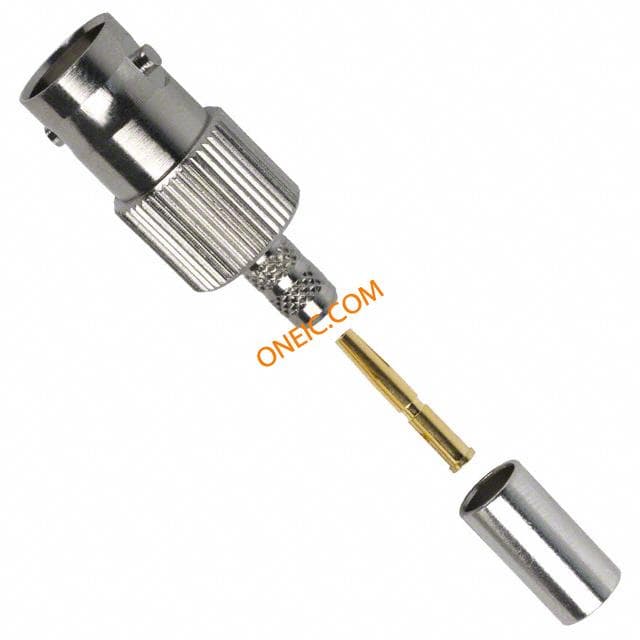

Conn BNC F 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC JACK STR 50 OHM CRIMP connector;rf coaxial;bnc crimp straight jack;for rg58;141;LMR195 cable;50 ohm RF Connectors / Coaxial Connectors BNC ST CRIMP JACK RG58 LMR195 RF/COAXIAL, BNC JACK, STR, 50 OHM, CRIMP connector, rf coaxial, bnc crimp straightjack, for rg58, 141, LMR195 cable, 50 ohm 112144 BNC Female Crimp Connector, Cable Group C, Amphenol
