31-317
| Manufacturer | |
| Description | Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold connector;rf coaxial;bnc straight jack;crimp-crimp;for rg174;188;316 cable;50ohm RF Connectors / Coaxial Connectors SRT JCK RG316/174 |
| Category |
Business
| Product | Connectors | Part # Aliases | 031-317 50F1607 713-1084 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Bulk |
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Coupling Factor | Bayonet | Frequency - Max | 4 GHz |
Mechanical
| Weight | 0.463994 oz | Cable Type | RG-174, RG-188, RG-316, Belden 7805 |
| Body Finish | Nickel | Orientation | Straight |
| Termination | Crimp | Body Material | Brass |
| Mounting Type | Cable Mount | Contact Finish | Gold |
| Contact Material | Beryllium Copper|Phosphor Bronze | Termination Style | Cable - Crimp |
| Contact Termination | Crimp | Supplier Device Package | Straight |
Product Info
| Type | BNC | Gender | RCP |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | 031-317 | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | - 65 C to + 165 C |
Documents & Media
Similar Parts

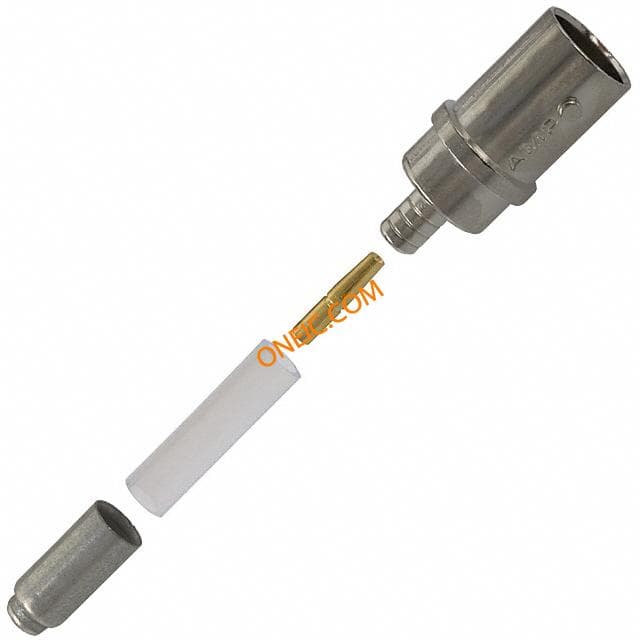

5413779-3
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM CRIMP BNC jack,hex crimp,RG 174,RG 188, RG 316 RF Connectors / Coaxial Connectors H.C. CABLE JACK 50 Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 Jack,Crimp;50Ohms;Straight;Coaxial;BNC;Gold;BerylliumCopper;Nickel TE Connectivity 直 50Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG174/U, RG188/U, RG316/U电缆, 镀镍本体 COML BNC,50 OHM, HEX CRIMP

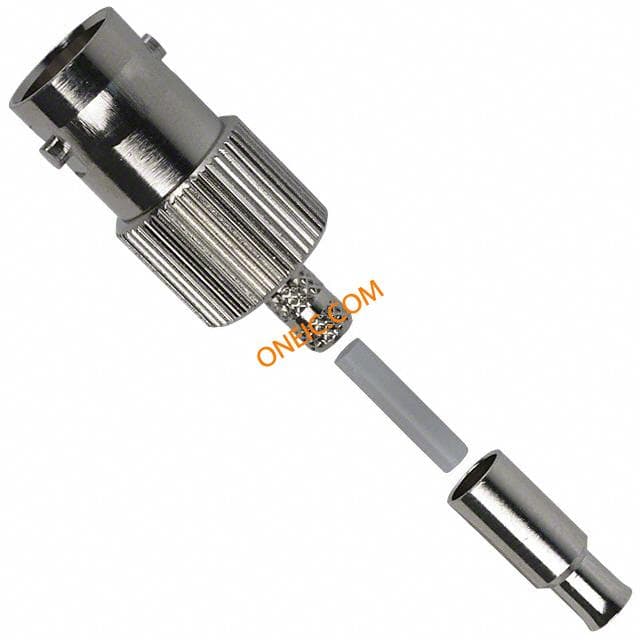

112160
amphenol connex
Conn BNC F 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC JACK STR 50 OHM CRIMP connector;rf coaxial;bnc crimp straight jack;for rg174;316;LMR100 cable;50 ohm RF Connectors / Coaxial Connectors BNC STRAIGHT CRIMP JACK RG-316 174 RF/COAXIAL, BNC JACK, STR, 50 OHM, CRIMP connector, rf coaxial, bnc crimp straightjack, for rg174, 316, LMR100 cable, 50 ohm
MC23572
Avnet, Inc.
RF/COAXIAL, BNC JACK, STR, 50 OHM, CRIMP
