RJF71B
| Manufacturer | |
| Description | Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Female Jam Nut Panel Mount Field RJ45 Connector, LAN Category Cat5e connector;metal circular;jam nut recept;bayonet coupling;rj45 ethernet;black Modular Connectors / Ethernet Connectors RJ45 Jam Nut Recpt Female Black connector, metal circular, jam nut recept, bayonet coupling, rj45 ethernet, black 保险螺帽 面板安装 RJ45 连接器 母, Cat5e, 41mm直径 |
| Category |
Business
| Part # Aliases | 03H9933 308-4615 | Product Category | Modular Connectors / Ethernet Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Connector - Voltage Input | Cat5e | ||
Mechanical
| Color | Black | Depth | 39.1mm |
| Width | 41.3mm | Length | 41.3mm |
| Diameter | 41mm | Shielding | Unshielded |
| Orientation | Straight | Shield Type | 无屏蔽 |
| Weight (g): | 37.40000 | Mounting Type | Jam Nut |
| Connector Type | 母座 | Mounting Style | Screw |
| Mounting Feature | Front Side Nut | Primary Material | Sealed |
| Termination Style | Solder Terminal | Shell Material, Finish | Metal |
Product Info
| Type | RJ-45 | Grade | Cat5e |
| Gender | RCP | Series | RJF |
| Features | Circular Bayonet Coupling | Direction | 直 |
| USOC Codes | RJ45 | Socket Type | Jam Nut |
| Manufacturer | RJField Series | Number of Ports | 1 |
| Network Technology | Cat5e | Output Configuration | Panel Mount, Bulkhead |
| Performance Category | Cat 5e | Application Specifics | For robotics, industrial process control, CNC machines, special machines, motion control, data acquisition and transmission in harsh environments and tele-maintenances |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) | Convert From (Adapter End) | Jack, 8p8c (RJ45) |
Environmental
| Ratings | Cat5e | Seal Rating | IP67 |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
RJF71B
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Female Jam Nut Panel Mount Field RJ45 Connector, LAN Category Cat5e connector;metal circular;jam nut recept;bayonet coupling;rj45 ethernet;black Modular Connectors / Ethernet Connectors RJ45 Jam Nut Recpt Female Black connector, metal circular, jam nut recept, bayonet coupling, rj45 ethernet, black 保险螺帽 面板安装 RJ45 连接器 母, Cat5e, 41mm直径
RJFC7N
amphenol pcd
Connector Accessories Metallic Cap Jam Nut Receptacle Nickel CONN ACCY CAP Modular Connectors / Ethernet Connectors Jam Nut Recept Cap RJ45 Cat5e Nickel connector accessory, rj field, cap for jam nut receptacle(bayonet coupling), nickel
RJFC7B
amphenol pcd
Connector Accessories Metallic Cap Jam Nut Receptacle Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Jam Nut Recept Cap RJ45 Cat5e Black connector accessory, rj field, protectioncap for jam nut receptacle, black

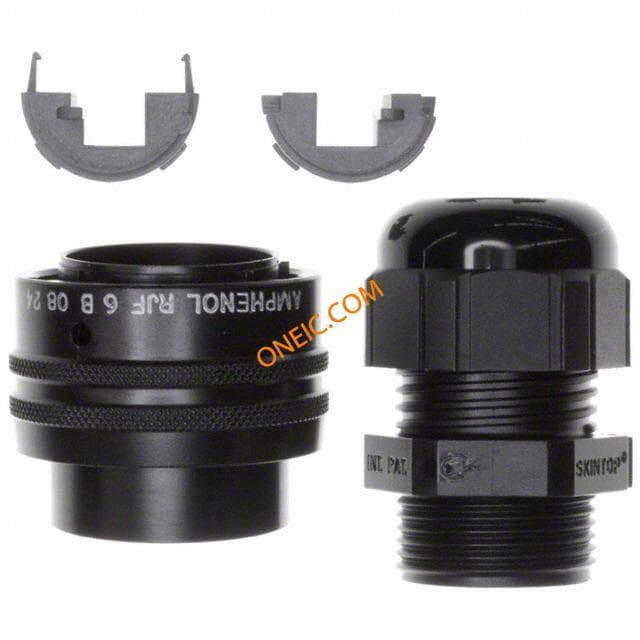

RJF6B
