RJF6B
| Manufacturer | |
| Description | Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e CONN MOD HOUSING RJ45 UNSHIELDED Modular Connectors / Ethernet Connectors Plug w/Plastic Gland Black CONNECTOR, MODULAR JACK, SEALED, 8WAY connector, metal circular, str plug, bayonet coupling, rj45 ethernet, black finish |
| Category |
Business
| Part # Aliases | 03H9932 308-4610 | Product Category | Modular Connectors / Ethernet Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Connector - Voltage Input | :Cat5e | ||
Mechanical
| Color | Black | Depth | 34.9 |
| Weight | 0.98 | Packaging | Bulk |
| Shielding | Unshielded | Weight (g): | 39.60000 |
| Mounting Type | Cable Mount | Connector Type | Housing for Prewired RJ45 Cordset |
| Contact Finish | :- | Fastening Type | Bayonet Lock |
| Contact Material | :- | Housing Material | Plastic |
| Length - Overall | 57.8 | Primary Material | Sealed |
| Number of Contacts | 8 | Contact Termination | :Solder |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Plug Not Provided | Type | RJ-45 |
| Gender | PL | Series | RJF |
| Features | Shock Resistant, Toolless, Vibration Resistant | USOC Codes | RJ45 |
| Manufacturer | RJField Series | Category Number | Cat 5e |
| Number of Ports | 1 | Application Specifics | For robotics, industrial process control, CNC machines, special machines, motion control, data acquisition and transmission in harsh environments and tele-maintenances |
| Number of Positions Loaded | 8 | ||
Environmental
| Mating Cycles | 500 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
RJF71B
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Female Jam Nut Panel Mount Field RJ45 Connector, LAN Category Cat5e connector;metal circular;jam nut recept;bayonet coupling;rj45 ethernet;black Modular Connectors / Ethernet Connectors RJ45 Jam Nut Recpt Female Black connector, metal circular, jam nut recept, bayonet coupling, rj45 ethernet, black 保险螺帽 面板安装 RJ45 连接器 母, Cat5e, 41mm直径

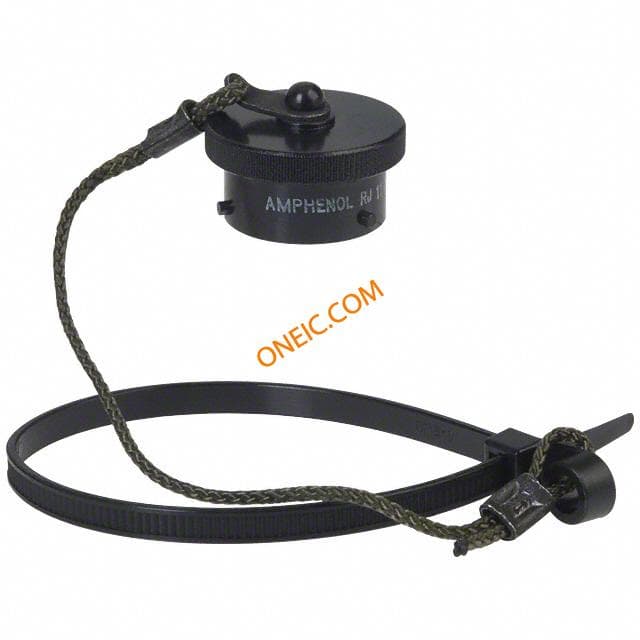

RJFC6B
amphenol pcd
Connector Accessories Metallic Cap Plug Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Metallic Plug Cap RJ45 Cat5e Black connector accessory, rj field, cap for straight plug(bayonet coupling), black

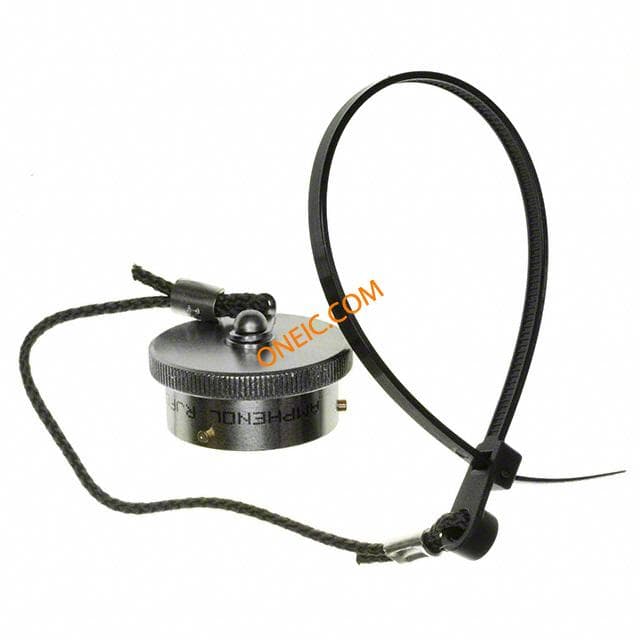

RJFC6N
amphenol pcd
Connector Accessories Metallic Cap Plug Nickel CONN ACCY CAP Metalic Cap for plug,Nickel Modular Connectors / Ethernet Connectors Metallic Plug Cap RJ45 Cat5e Nickel connector accessory, rj field, cap for straight plug(bayonet coupling), nickel Amphenol 防尘盖

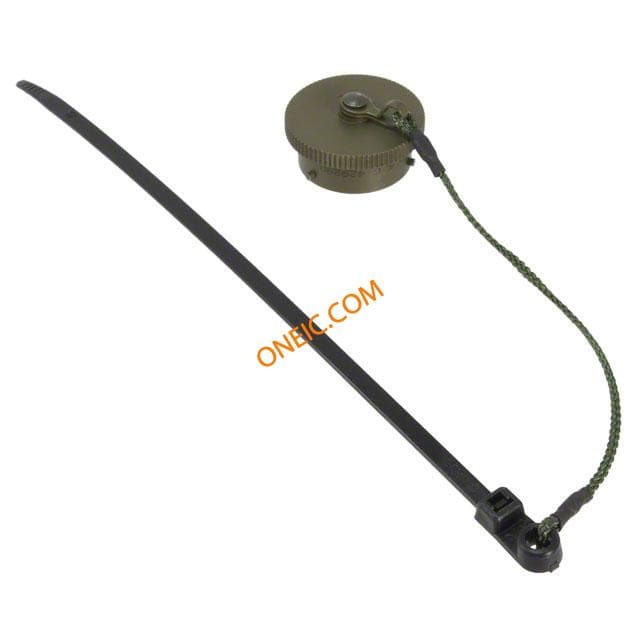

RJFC6G
