ELFP11210
| Manufacturer | |
| Description | Conn Terminal Block F 11 POS 5.08mm Screw RA Cable Mount 15A TERM BLOCK PLUG 11POS STR 5.08MM |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Current Rating (Max) | 15 | Voltage - Input (Min) | 300V |
Mechanical
| Color | Black | Depth | 18.38 |
| Pitch | 5.08 mm | Height | 15.03 |
| Packaging | Tray | Wire Gauge | 14-26 AWG |
| Termination | Screw | Housing Color | Black |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Contact Material | Copper Alloy | Housing Material | Polyphenylene Oxide |
| Length - Overall | 55.88 | Number of Contacts | 11 |
| Number of Positions | 11 | Terminal Block Type | Plug, Female Sockets |
Product Info
| Type | Terminal Block | Gender | F |
| Features | Retention Latches (Non-Wire Side) | Number of Levels | 1 |
| Positions Per Level | 11 | ||
Documents & Media
Similar Parts
ELFH11220
amphenol pcd
Conn Shrouded Header HDR 11 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 11POS R/A 5.08MM
ELFH11280
amphenol pcd
Conn Shrouded Header HDR 11 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 11POS VERT 5.08MM
ELFH11250E
Amphenol PCD
Pluggable Terminal Blocks VERTICAL HEADER 5.08MM 11POS EARED TERM BLOCK HDR 11POS VERT 5.08MM Amphenol ELFH Series 5.08mm Pitch 11 Way 1 Row Vertical PCB Header, Solder Termination, 15A Conn; Term Blk; PCB; 11; 5.08 mm; Vert.; Black; 15 A; 300 V; w/ Locking Ears
ELFH11210E
Amphenol PCD
Pluggable Terminal Blocks HORIZONTAL HEADER 5.08MM 11POS EARED TERM BLOCK HDR 11POS R/A 5.08MM Amphenol ELFH Series 5.08mm Pitch 11 Way 1 Row Right Angle PCB Header, Solder Termination, 15A Conn; Term Blk; PCB; 11; 5.08 mm; Horiz.; Black; 15 A; 300 V; w/ Locking Ears
ELFA22250
amphenol pcd
VERTICAL HEADER TERM BLOCK HDR 22POS VERT 5.08MM
ELFH11250J
amphenol pcd
VERT HEAD CLOSED ENDS EJECT EARS Pluggable Terminal Blocks Hor Header W/Eject Ears 11pos .2in TERM BLOCK HDR 11POS VERT 5.08MM
ELFA22210
amphenol pcd
RIGHT ANGLE HORIZONTAL HEADER TERM BLOCK HDR 22POS R/A 5.08MM
ELFD22260
amphenol pcd
Conn Stackable Header HDR 22 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 22POS VERT 5.08MM

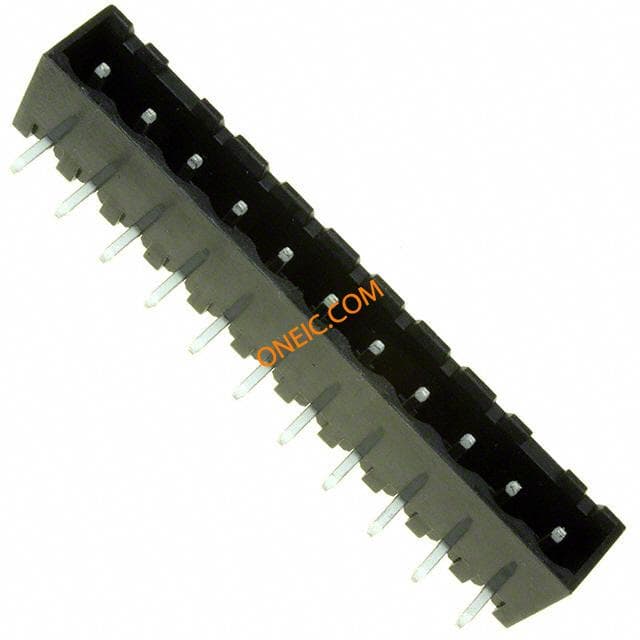

ELFH11210
amphenol pcd
Conn Shrouded Header HDR 11 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 11POS R/A 5.08MM Amphenol ELFH Series 5.08mm Pitch 11 Way 1 Row Right Angle PCB Header, Solder Termination, 15A Pluggable Terminal Blocks HORIZONTAL HEADER 5.08MM 11P CLOSED Conn; Term Blk; PCB; 11; 5.08 mm; Horiz.; Black; 15 A; 300 V
ELFH11230
amphenol pcd
Conn Shrouded Header HDR 11 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 11POS R/A 5.08MM

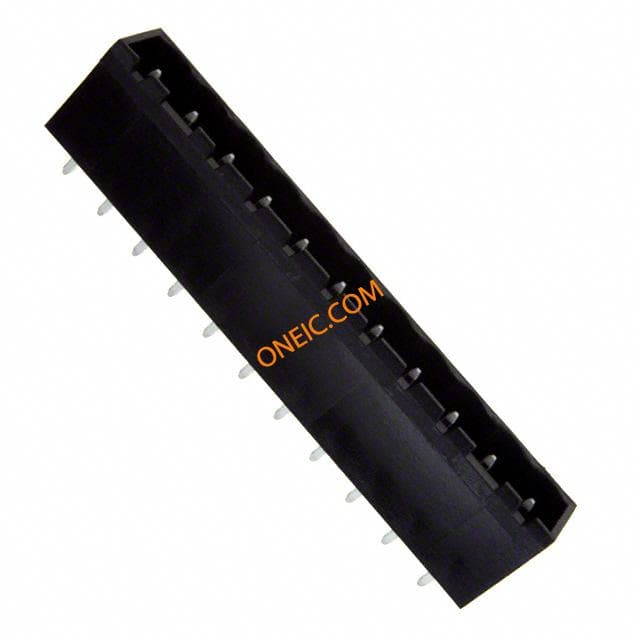

ELFH11250
