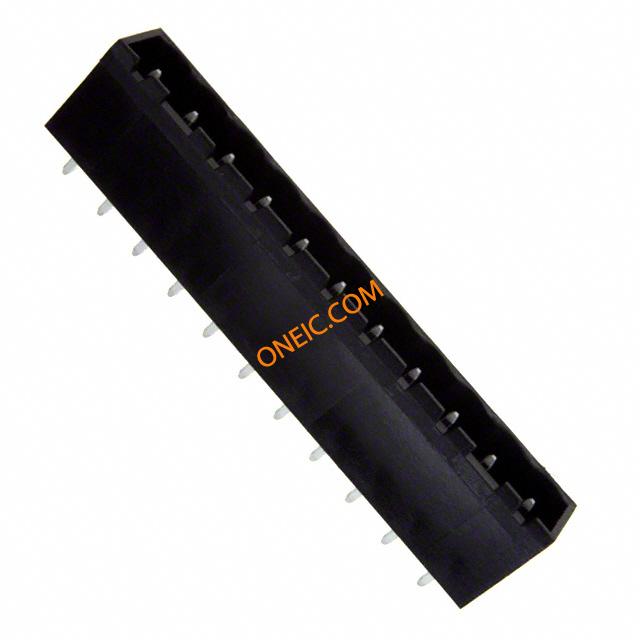

ELFH11250
| Manufacturer | |
| Description | Conn Shrouded Header HDR 11 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 11POS VERT 5.08MM Amphenol ELFH Series 5.08mm Pitch 11 Way 1 Row Vertical PCB Header, Solder Termination, 15A Pluggable Terminal Blocks VERTICAL HEADER 5.08MM 11P CLOSED Conn; Term Blk; PCB; 11; 5.08 mm; Vert.; Black; 15 A; 300 V |
| Category |
Business
| Product | Headers | Other Names | APC1251 |
| Part # Aliases | 308-0195 | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 15A |
| Voltage - Input (Min) | 300V | ||
Mechanical
| Color | Black | Depth | 8.1 |
| Pitch | 5.08 mm | Height | 12.06 |
| Packaging | Bulk | Termination | Solder |
| Housing Color | Black | Mounting Type | Straight |
| Contact Finish | Tin-Lead | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 56.03 | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 11 |
| Number of Positions | 11 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | ELFH | Number of Levels | 1 |
| Positions Per Level | 11 | ||
