点击放大查看

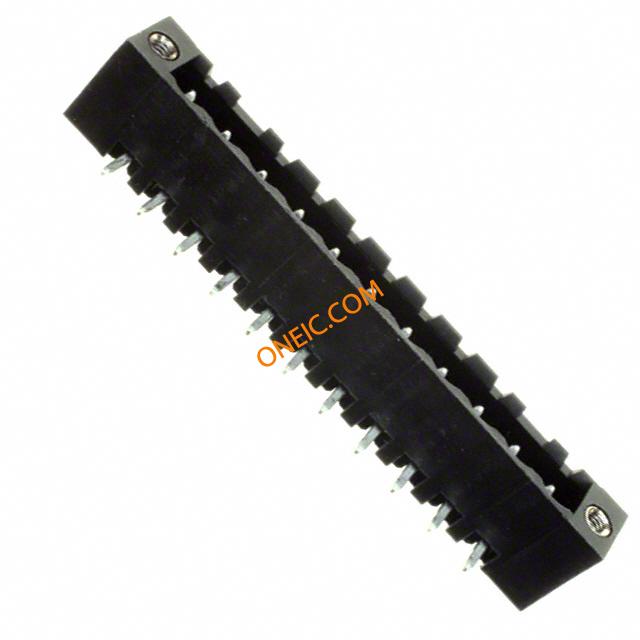

ELFH11210E
| Manufacturer | |
| Description | Pluggable Terminal Blocks HORIZONTAL HEADER 5.08MM 11POS EARED TERM BLOCK HDR 11POS R/A 5.08MM Amphenol ELFH Series 5.08mm Pitch 11 Way 1 Row Right Angle PCB Header, Solder Termination, 15A Conn; Term Blk; PCB; 11; 5.08 mm; Horiz.; Black; 15 A; 300 V; w/ Locking Ears |
| Category |
Business
| Product | Headers | Other Names | APC1273 |
| Part # Aliases | 308-0205 | Product Category | Pluggable Terminal Blocks |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 15 A |
Mechanical
| Color | Black | Pitch | 5.08 mm |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Through Hole | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Termination Style | Screw |
| Header Orientation | 90°, Right Angle | Number of Contacts | 11 |
| Number of Positions | 11 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
Product Info
| Type | Shrouded Header | Series | ELFH |
| Features | Flange | Number of Levels | 1 |
| Positions Per Level | 11 | ||
