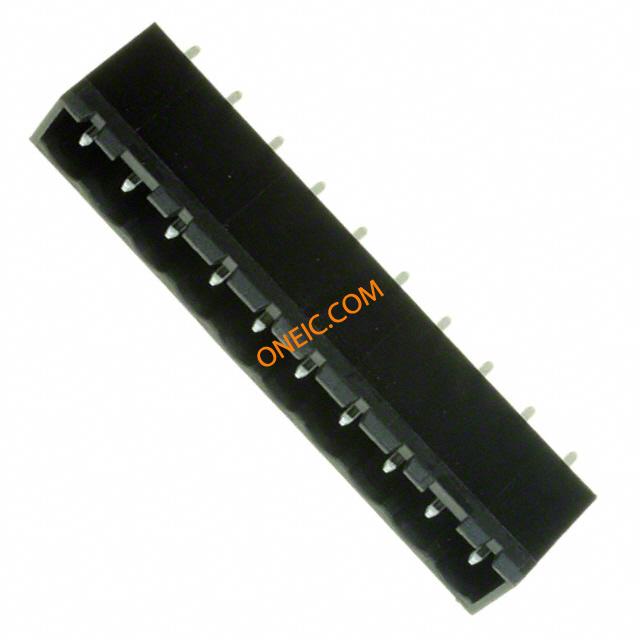

ELFH10250
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 10POS VERT 5.08MM Amphenol ELFH Series 5.08mm Pitch 10 Way 1 Row Vertical PCB Header, Solder Termination, 15A Pluggable Terminal Blocks VERTICAL HEADER 5.08MM 10P CLOSED Conn; Term Blk; PCB; 10; 5.08 mm; Vert.; Black; 15 A; 300 V |
| Category |
Business
| Product | Headers | Other Names | APC1250 |
| Part # Aliases | 308-0194 | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 15A |
| Insulation Resistance | 100000 MOhms | ||
Mechanical
| Color | Black | Pitch | 5.08 mm |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Through Hole | Contact Finish | Tin-Lead |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 10 |
| Number of Positions | 10 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | ELFH | Number of Levels | 1 |
| Positions Per Level | 10 | ||
