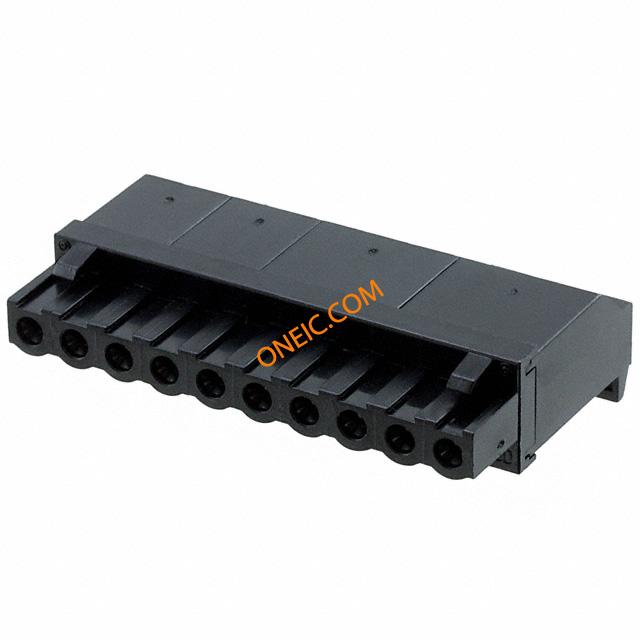

ELFF10230
| Manufacturer | |
| Description | Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 10POS 5.08MM Pluggable Terminal Blocks Plug Top Entry 10 pos .2in Conn Terminal Blocks F 10 POS 5.08mm Screw ST Cable Mount 15A |
| Category |
Business
| Product | Pluggable Terminal Blocks | Other Names | APC1182 |
| Product Category | Pluggable Terminal Blocks | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage - Supply | 300V | Current Rating (Max) | 15 A |
| Voltage - Supply (Min) | 300V | ||
Mechanical
| Color | Black | Depth | 30.93 mm |
| Pitch | 5.08 mm | Height | 14.37 mm |
| Packaging | Bulk | Wire Gauge | 14-26 AWG |
| Termination | Screw | Housing Color | Black |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Mounting Style | Cable | Number of Rows | 1 |
| Plug Wire Entry | 90° | Contact Material | Copper Alloy |
| Housing Material | Polyphenylene Oxide | Length - Overall | 50.8 mm |
| Cable Termination | 90° | Number of Contacts | 10 |
| Number of Positions | 10 | Terminal Block Type | Plug, Female Sockets |
| Number of Poles per Deck | 10 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | ELFF | Features | Retention Latches (Wire Side) |
| Main Purpose | Retention Latches (Wire Side) | Number of Levels | 1 |
| Positions Per Level | 10 | Output Configuration | Free Hanging (In-Line) |
