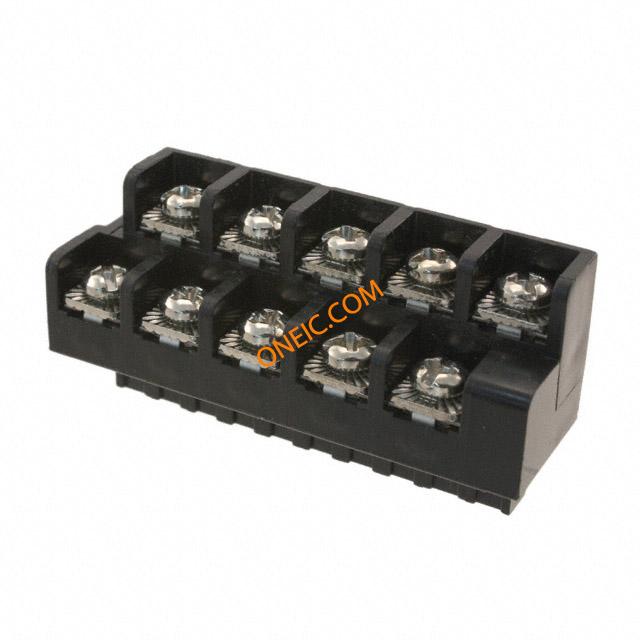

FXPT10200
| Manufacturer | |
| Description | Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 20POS 5.08MM Barrier Terminal Blocks FLEXIPLUG 5.08MM 10POS BLACK Conn; Term Blk; Plug; Screw; 10; 5.08 mm; 26-12 AWG; 15 A; 300 V |
| Category |
Business
| Product | Barrier Terminal Blocks | Other Names | APC1143 |
| Part # Aliases | 308-0162 | Product Category | Barrier Terminal Blocks |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 15 A |
Mechanical
| Color | Black | Pitch | 5.08 mm |
| Length | 57.66 mm | Packaging | Bulk |
| Wire Gauge | 12-26 AWG | Termination | Screw |
| Housing Color | Black | Mounting Type | Cable Mount |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Plug Wire Entry | 90° | Housing Material | Polyphenylene Oxide (PPO) |
| Termination Style | Screw | Number of Contacts | 10 |
| Number of Positions | 20 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 26-12 | Wire Gauge or Range - mm2 | 12 |
Product Info
| Type | Terminal Block | Gender | F |
| Features | Retention Latches (Non-Wire Side) | Number of Levels | 2 |
| Positions Per Level | 10 | ||
