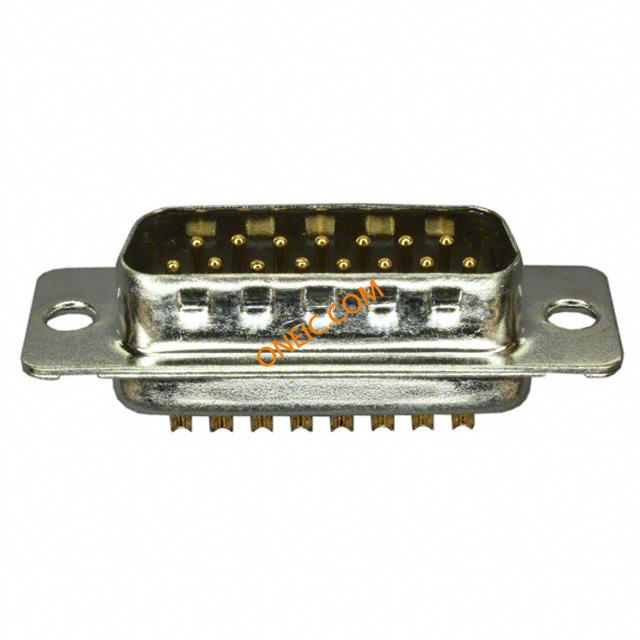

L717DA15P
| Manufacturer | |
| Description | Conn D-Subminiature PIN 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port 15P D-SUB MALE SOLDER CUP CONN DSUB PLUG 15POS SLD CUP D-Sub male 15P, L717DA15P, Amphenol |
| Category |
Business
| MOQ | 1 | Unit Pack | 1 |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Approval Agency | -55 TO 85 |
Electrical
| Voltage Rating | 300V | Current Rating (Max) | 7.5A |
| Voltage - Input (Min) | 300VAC | Voltage - Supply (Min) | 300VAC |
Mechanical
| Color | Black | Height | 12.93 mm |
| Packaging | Bulk | Termination | Solder Cup |
| Weight (g): | 7.20000 | Contact Type | MALE |
| Mounting Type | Panel Mount | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Connector Style | D-Sub | Contact Material | Brass |

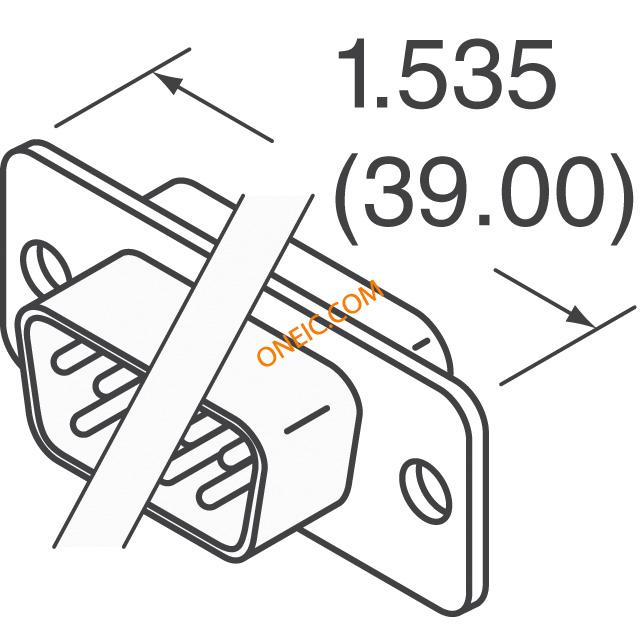

| Housing Material | Thermoplastic | Length - Overall | 39.52 mm |
| 1st Contact Gender | PIN | Number of Contacts | 15 |
| Number of Positions | 15 | Plating - Thickness | 7.5 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 3.9µin (0.10µm) |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Type | D-Subminiature | Gender | PIN |
| Series | STRAIGHT | Features | Grounding Indents |
| Matchcode | L717DA15P | Number of Ports | 1 |
| Standard Leadtime | 6 weeks | ||
Environmental
| Mating Cycles | 300 | Operating Temperature | TIN°C |
Similar Parts
17E-1657-15
amphenol canada, corp.
Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 15 POS D-Sub Backshells 15P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB15 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 15/hd 26 Hood; D-Sub; 15STDPos, 26HDPos; STRExit; 17ESeries; Die-CastMetal; 0.400in.CblDia
L77DA15S
amphenol canada, corp.
Conn D-Subminiature SKT 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port CONN DSUB RCPT 15POS SLD CUP D-Sub female 15P, L77DA15S, Amphenol
17E-1725-2
Amphenol Commercial Products
D-Sub Backshells 15P METALLIZED 2 PIECE BACKSHELL CONN BACKSHELL DB15 METAL PLATED connector accessory;d-sub;2-piece metalized plastic hood;for std 15/hd 26 cont Hood; D-Sub; 15STDPos, 26HDPos; STRExit; 17E Series; MetallizedPlastic; 0.400In.CblDia
17E-1725-1
Amphenol Commercial Products
D-Sub Backshells 15P PLASTIC 2 PIECE BACKSHELL CONN BACKSHELL DB15 BLK PLASTIC connector accessory;d-sub;2-piece str black plastic hood;for std 15/hd 26 cont Hood; D-Sub; 15STDPos, 26HDPos; STRExit; 17E Series; Plastic; 0.400In.CblDia
L17DAFRA15S
Amphenol Commercial Products
D-Sub Standard Connectors IDC Female 15P D-SUB 15POS RECPT IDC GOLD Flat ribbon IDC D-Sub 15way receptacle Conn D-Subminiature SKT 15 POS 2.74mm IDT RA Cable Mount 15 Terminal 1 Port Plug; D-Sub; DFR; PIN:15; female; IDC; for ribbon cable; gold flash Amphenol DFR 系列 2.74mm 节距 15 路 IDC D-Sub 带状电缆连接器, 插座, 钢外壳
17E17252
amphenol canada, corp.
Connector Accessories Plated Plastic Backshell Acrylonitrile Butadiene-Styrene Nickel Over Copper D-Sub 15 POS PLATED PLASTIC BACKSHELL

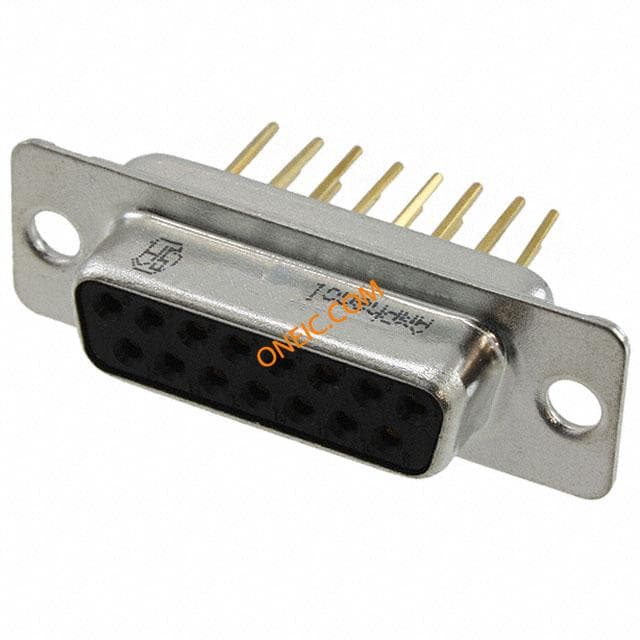

L77DA15SF179
amphenol canada, corp.
Conn D-Subminiature SKT 15 POS Wire Wrap ST Panel Mount 15 Terminal 1 Port CONN D-SUB SKT 15POS WIRE WRAP

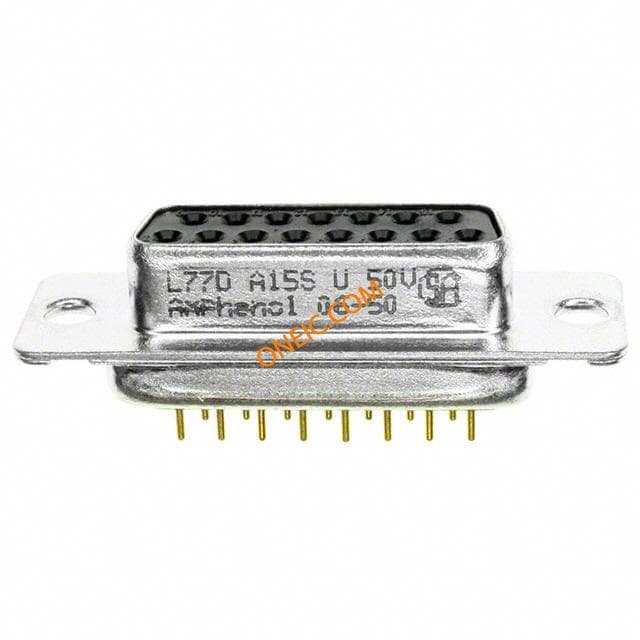

L77DA15SU
