L77DA15S
| Manufacturer | |
| Description | Conn D-Subminiature SKT 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port CONN DSUB RCPT 15POS SLD CUP D-Sub female 15P, L77DA15S, Amphenol |
| Category |
Business
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Voltage Rating | 300V | Number of Poles | 15 |
| Current Rating (Max) | 7.5A | Voltage - Input (Min) | 300VAC |
| Voltage - Supply (Min) | 300VAC | ||
Mechanical
| Color | Black | Depth | 14.45 mm |
| Height | 12.93 mm | Packaging | Bulk |
| Termination | Solder Cup | Weight (g): | 8.80000 |
| Contact Type | Signal | Mounting Type | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Thermoplastic |
| Length - Overall | 39.52 mm | 1st Contact Gender | SKT |
| Number of Contacts | 15 | Number of Positions | 15 |
| 1st Connector Gender | Female | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 3.9µin (0.10µm) | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Type | D-Subminiature | Description | D-Sub female 15p |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Similar Parts
17E-1657-15
amphenol canada, corp.
Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 15 POS D-Sub Backshells 15P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB15 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 15/hd 26 Hood; D-Sub; 15STDPos, 26HDPos; STRExit; 17ESeries; Die-CastMetal; 0.400in.CblDia

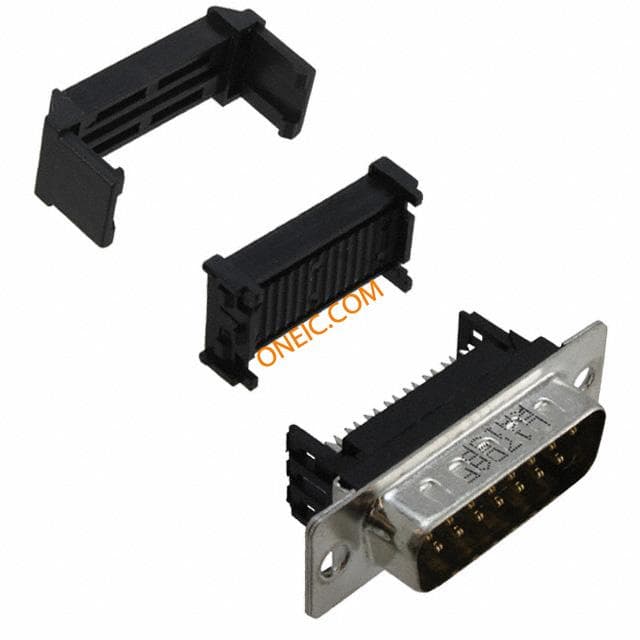

L17DAFRA15P
Amphenol Commercial Products
D-Sub Standard Connectors IDC Male 15P D-SUB 15POS PLUG IDC GOLD Flat ribbon IDC D-Sub 15way plug Conn D-Subminiature PIN 15 POS 2.74mm IDT RA Cable Mount 15 Terminal 1 Port FLATRIBBD-SUB15WPLUG Plug; D-Sub; DFR; PIN:15; male; IDC; for ribbon cable; gold flash D-Sub male 15P, L17DAFRA15P, Amphenol Amphenol DFR 系列 2.74mm 节距 15 路 IDC D-Sub 带状电缆连接器, 插头, 钢外壳
17E-1725-2
Amphenol Commercial Products
D-Sub Backshells 15P METALLIZED 2 PIECE BACKSHELL CONN BACKSHELL DB15 METAL PLATED connector accessory;d-sub;2-piece metalized plastic hood;for std 15/hd 26 cont Hood; D-Sub; 15STDPos, 26HDPos; STRExit; 17E Series; MetallizedPlastic; 0.400In.CblDia
17E-1725-1
Amphenol Commercial Products
D-Sub Backshells 15P PLASTIC 2 PIECE BACKSHELL CONN BACKSHELL DB15 BLK PLASTIC connector accessory;d-sub;2-piece str black plastic hood;for std 15/hd 26 cont Hood; D-Sub; 15STDPos, 26HDPos; STRExit; 17E Series; Plastic; 0.400In.CblDia
L717DA15P
amphenol canada, corp.
Conn D-Subminiature PIN 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port 15P D-SUB MALE SOLDER CUP CONN DSUB PLUG 15POS SLD CUP D-Sub male 15P, L717DA15P, Amphenol

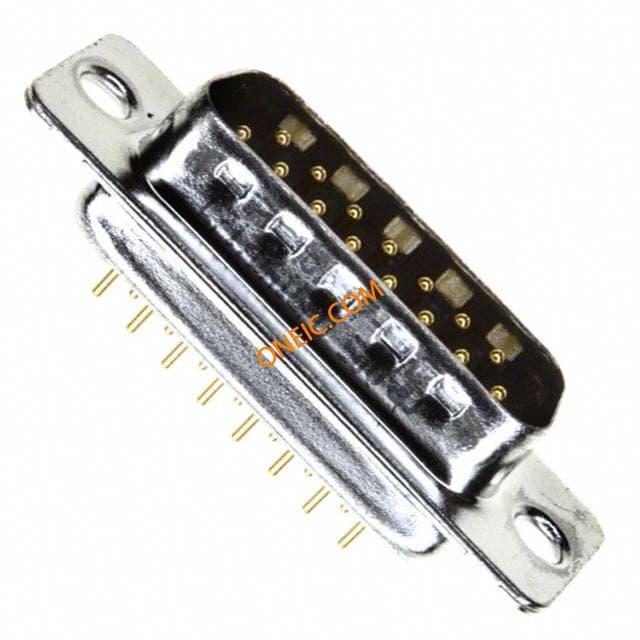

L717DA15PU
