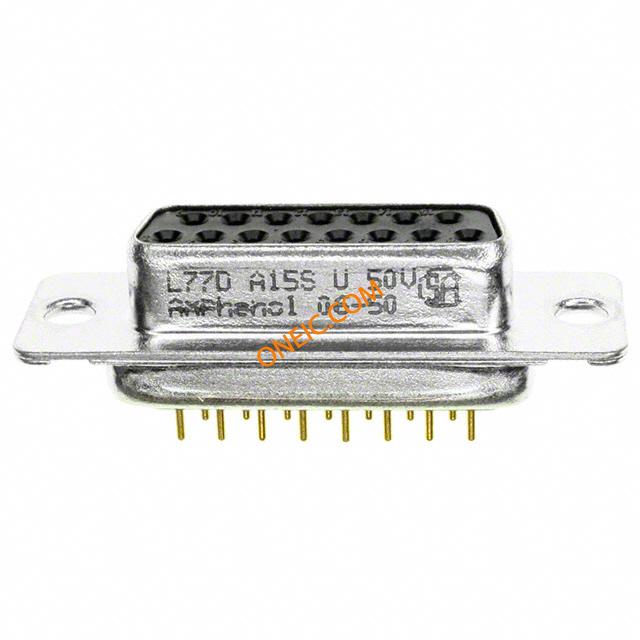

L77DA15SU
| Manufacturer | |
| Description | Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port CONN D-SUB RCPT 15POS GOLD PCB D SUB CONNECTOR, STANDARD, 15POS, RCPT |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :AMPHENOL - 17D Series | Voltage Rating | 300V |
| Current Rating (Max) | 7.5A | ||
Mechanical
| Color | Black | Weight | 0.005 |
| Packaging | Bulk | Shell Size | :DA |
| Termination | Solder | Contact Type | Signal |
| Body Material | :Steel | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Number of Rows | 2 |
| Connector Style | D-Sub | Material - Body | :Metal |
| Housing Material | Thermoplastic, Glass Filled | Number of Contacts | :15 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 15 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 3.9µin (0.10µm) |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Gender | :Receptacle | ||
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
