N4640-2000
| Manufacturer | |
| Description | Conn Ejector Header HDR 40 POS 2.54mm Solder ST SMD .100" Ã .100" High Temp CONN HEADER 40POS .100 SMD GOLD Headers & Wire Housings BOARD MOUNT HEADER 40 POSITION |
| Category |
Business
| Part # Aliases | 05113831957 80610711477 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Vendor undefined / RoHS non-compliant | RoHS Compliance | No |
Electrical
| Voltage Rating | 1 kV | Switch Function | Unlatched |
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 1 lb | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Surface Mount |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Termination Style | SMD |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 40 |
| Number of Positions | 40 | Contact Length - Mating | 0.243" (6.17mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | N4600 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
CHG-2040-J01010-KEP
3M Electronic Solutions Division
Headers & Wire Housings 40P PLRZD IDC SOCKET 22 AND 24 AWG .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 40POS 24-22 AWG CONNECTOR, 2.54MM, 40WAY Conn;Rect;Socket;Wiremnt;0.1inPitch;40Pos;2Row;24-22AWG;IDC;CHGSer;Polar
CHG-2040-001010-KEP
3m interconnect solutions
Conn IDC Connector SKT 40 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 40POS 24-22 AWG
89140-0103
3m interconnect solutions
40/SKT/DUAL RECESS CVR/PREASB/CB/S WSR/30AVG .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 40 POS IDC W/STR REL Headers & Wire Housings 40P IDC SOCKET SOCKET, IDC, STRAIN, 40WAY Conn;Rect;Socket;IDCRibbonCable;0.100in;40Cnt;891Ser. 3M 891 系列 2行 40路 2.54mm节距 母 IDC 连接器 , 电缆安装
9140-4500PL
3m interconnect solutions
Conn Board to Board SKT 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 20 - 64 contacts CONN SOCKET 40POS .100" STR GOLD Headers & Wire Housings 40P STRT PLRZD SKT SOCKET, PCB, 40WAY PolarizedBoardmountSocket(40pos).100centerlinestraightsoldertails

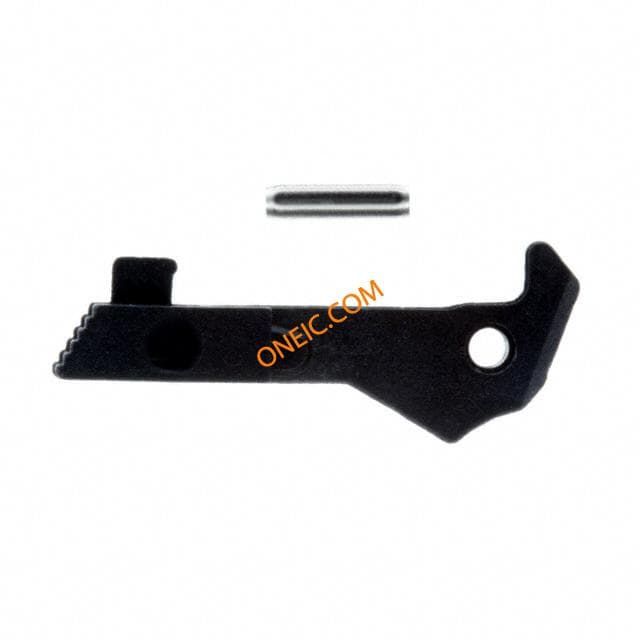

N3505-22
