点击放大查看
89140-0103
| Manufacturer | |
| Description | 40/SKT/DUAL RECESS CVR/PREASB/CB/S WSR/30AVG .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 40 POS IDC W/STR REL Headers & Wire Housings 40P IDC SOCKET SOCKET, IDC, STRAIN, 40WAY Conn;Rect;Socket;IDCRibbonCable;0.100in;40Cnt;891Ser. 3M 891 系列 2行 40路 2.54mm节距 母 IDC 连接器 , 电缆安装 |
| Category |
Business
| Part # Aliases | 05400751567 80610657431 | Product Category | Headers & Wire Housings |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
Electrical
| Range deg/s | :3M - 891 Series | Current Rating (Max) | 1 A |
Mechanical
| Color | Gray | Pitch | 0.100" (2.54mm) |
| Weight | 9 lbs | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 26-28 AWG |
| Row Spacing | 0.100" (2.54mm) | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 40 |
| Contact Termination | :IDC / IDT | Number of Positions | 40 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Ribbon Cable | Gender | :Socket |
| Series | 891 | Features | Feed Through; Polarizing Key, Strain Relief |
| Product Type | Receptacles / Sockets - Housings | ||
Documents & Media
Similar Parts
N3432-6002RB
3M Electronic Solutions Division
Headers & Wire Housings BOARDMT HDR 40P NO LATCH/EJECTOR .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 40 CONTACT 3M 3000 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 2A Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Header,4-Wall;CopperAlloy;200uin.60/40Tin/Lead;1;Black;0.68in.;40 Pin header DIN 41651 40P, N3432-6002RB, 3M 3M 3000 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
N3432-6603RB
3m interconnect solutions
40/HDR/LL/STR/HT/.155/30AVG/ROHS CONN HEADER 40POS STR GOLD T/H Headers & Wire Housings 40P STRT SOLDER TAIL LATCH/EJECTOR
N3432-L303RB
3m interconnect solutions
Conn Ejector Header HDR 80 POS 2.54mm Solder RA Thru-Hole CONN HEADER STKD 40POS R/A LO
N3432-6003RB
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR NO LATCH Headers & Wire Housings 40P STRT SOLDER TAIL LATCH/EJECTOR 3M(TM)FOUR-WALLHEADER,3000SERIES,N3432-6003RB
3432-6502
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40PS STR SHORT LATCH
3432-2303
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR LONG LATCH

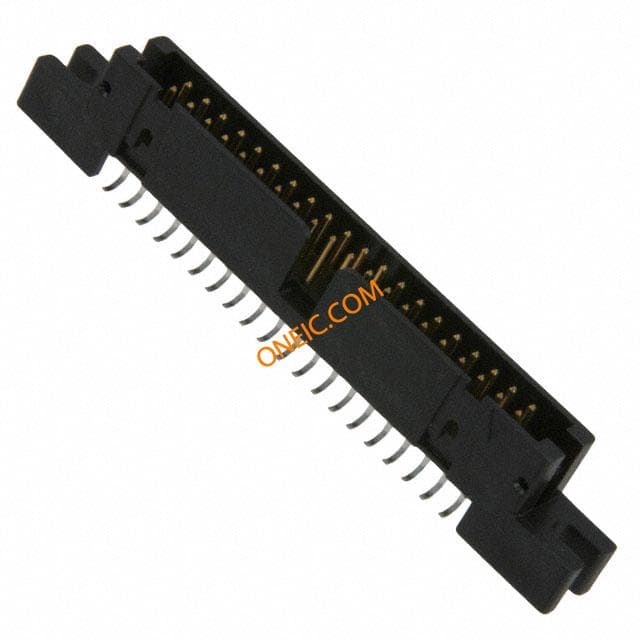

N4640-2000RB
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST SMD 40/HDR/SMT/STR/FLG Headers & Wire Housings 40POS 2.54MMSOLDER HEADER PAK100N4600Series.100SurfacemountHeader40pos/STR/30AVG/ROHS
N3432-650T02RB
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Press Fit ST Thru-Hole Headers & Wire Housings BOARDMT HDR 40 POS .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 40POS STR GOLD T/H
N3432-6502RB
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR GOLD T/H Headers & Wire Housings 40P STRAIGHT

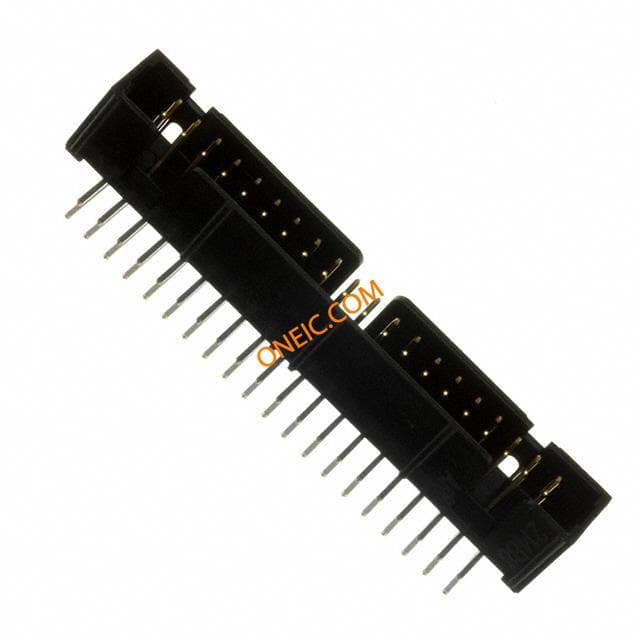

D2540-5002-AR
