8540-4500PL
| Manufacturer | |
| Description | Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole 40P STRAIGHT BM SOCKET .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 10 - 64 contacts CONN SOCKET PCB VERT 40POS .1" 3M 2.54mm 40 Way 2 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 40P STRT PLRZD SKT SOCKET, PCB, 40WAY PolarizedBoardmountSocket(40pos).100centerlinestraightsoldertails Socket; IDC; female; PIN:40; straight; THT; gold plated; 3A; 2.54mm 3M 8500 系列 2行 40路 直 2.54mm节距 通孔 印刷电路板插座, 插座板 |
| Category |
Business
| MOQ | 1 | Unit Pack | 100 |
| Part # Aliases | 54745226291 JE150318788 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | RoHS-conform | Approval Agency | UL E68080 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 1000V | Number of Poles | :40 |
| Voltage - Working | :350V | Current Rating (Max) | 1A |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Color | Gray | Depth | 7.1 mm |
| Pitch | 2.54 mm | Height | 10.8 mm |
| Weight | 0.008 | Material | :Glass Filled Polyester |
| Packaging | Bulk | Cable Exit | NO |
| Orientation | STRAIGHT | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | MALE |
| Lead Spacing | :2.54mm | Pitch - Post | 2.54mm |
| Housing Color | Gray | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | IDC |
| Length - Overall | 55.4 mm | Package Quantity | 100 |
| Connector - Cable | socket | Termination Style | Through Hole |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Grey |
| Number of Contacts | 40 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 40 | Contact Finish Thickness | 12µin (0.30µm) |
| Contact Material - Plating | gold plated | 1st Connector Mounting Feature | 2x20 |
Product Info
| Spg | 100 | Type | Socket Strip |
| Gender | SKT | Series | 8500 |
| Features | Polarizing Key | Polarity | :Bump |
| Matchcode | 85404500PL | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles / Sockets - PCB | Number of Units | 1 |
| Standard Leadtime | 13 weeks | Other Specifications | NO |
| Number of Positions Loaded | All | ||
Environmental
| Mating Cycles | 1 | Operating Temperature | -55 TO 105°C |
Documents & Media
Similar Parts
N3432-6002RB
3M Electronic Solutions Division

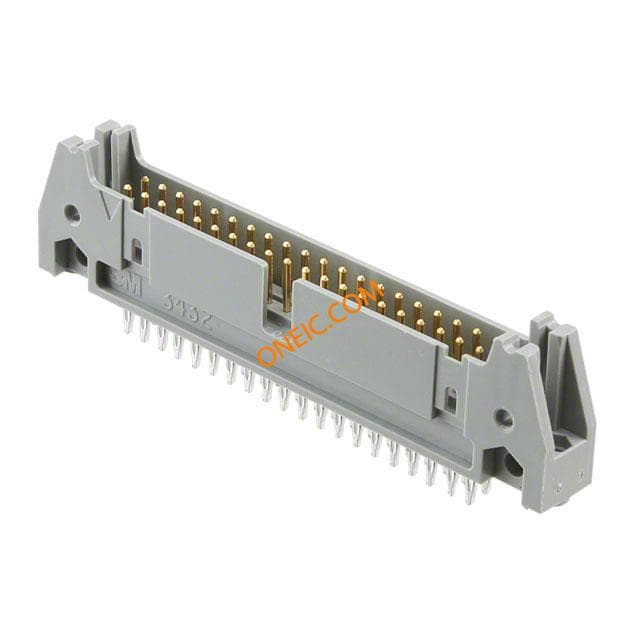

Headers & Wire Housings BOARDMT HDR 40P NO LATCH/EJECTOR .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 40 CONTACT 3M 3000 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 2A Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Header,4-Wall;CopperAlloy;200uin.60/40Tin/Lead;1;Black;0.68in.;40 Pin header DIN 41651 40P, N3432-6002RB, 3M 3M 3000 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
N3432-6603RB
3m interconnect solutions
40/HDR/LL/STR/HT/.155/30AVG/ROHS CONN HEADER 40POS STR GOLD T/H Headers & Wire Housings 40P STRT SOLDER TAIL LATCH/EJECTOR
3432-6502
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40PS STR SHORT LATCH
3432-2303
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR LONG LATCH
N3432-650T02RB
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Press Fit ST Thru-Hole Headers & Wire Housings BOARDMT HDR 40 POS .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 40POS STR GOLD T/H
N3432-6502RB
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR GOLD T/H Headers & Wire Housings 40P STRAIGHT
3432-600T02TC
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Press Fit ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 40POS STR NO LATCH Headers & Wire Housings BOARDMT HDR 40 POSITIONS
N2540-5003-UB
3M Electronic Solutions Division
Headers & Wire Housings 40 PIN .094 4WALL HDR CONN HEADER 40POS R/A GOLD T/H
3432-5003
3M Electronic Solutions Division
Headers & Wire Housings HEADER 40POS R ANGLE NO LATCH .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS R/A NO LATCH Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole
3432-5202
3M Electronic Solutions Division
Headers & Wire Housings 40P R/A SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40PS R/A SHORT LATCH
3432-5602
3M Electronic Solutions Division
Headers & Wire Housings USE 517-N3432-5302RB .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS R/A LONG LATCH
3432-6603
3M Electronic Solutions Division
Headers & Wire Housings 40P STRT SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR LONG LATCH
3432-6603UG
3M Electronic Solutions Division
Headers & Wire Housings 40P STRT SOLDER TAIL CONN HEADER 40POS STR LONG LATCH
2540-6003UG
3M Electronic Solutions Division
Headers & Wire Housings 40P STRT SOLDER TAIL CONN HEADER 40POS STR GOLD T/H
3432-2202
3M Electronic Solutions Division
Headers & Wire Housings 40P LOPRO STRT SDRTL .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 40PS STR SHORT LATCH
N3432-5002RB
3M Electronic Solutions Division
Headers & Wire Housings 40P R/A SOLDER TAIL NO LATCH/EJECTOR .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER RT ANG 40 CONTACT Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Header,4-Wall;CopperAlloy;200uin.60/40Tin/Lead;1;Beige;0.68in.;40 Pin header DIN 41651 40P, N3432-5002RB, 3M
3432-6002
3M Electronic Solutions Division
Headers & Wire Housings 40P STRT SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRT 40 CONTACT WallHeader;CopperAlloy;Nickel(Underplate)2.76in.
N4640-2000
3m interconnect solutions

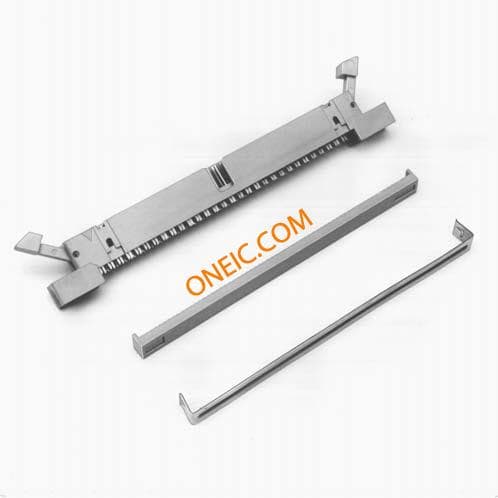

Conn Ejector Header HDR 40 POS 2.54mm Solder ST SMD .100" Ã .100" High Temp CONN HEADER 40POS .100 SMD GOLD Headers & Wire Housings BOARD MOUNT HEADER 40 POSITION
