8510-4500PL
| Manufacturer | |
| Description | Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole STRAIGHT BM SOCKET 10P .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 10 - 64 contacts CONN SOCKET PCB VERT 10POS .1" 3M 2.54mm 10 Way 2 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 10P STRT PLRZD SKT RECEPTACLE, THT, 2.54MM, 2ROW, 10WAY PolarizedBoardmountSocket(10pos).100centerlinestraightsoldertails Socket; IDC; female; PIN:10; straight; THT; gold plated; 3A; 2.54mm 3M 8500 系列 2行 10路 直 2.54mm节距 通孔 印刷电路板插座, 插座板 |
| Category |
Business
| MOQ | 1 | Unit Pack | 100 |
| Part # Aliases | 54745226285 JE150318721 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | RoHS-conform | Approval Agency | UL E68080 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 1000V | Number of Poles | :10 |
| Voltage - Working | :350V | Current Rating (Max) | 1A |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Color | Gray | Depth | 7.1 mm |
| Pitch | 2.54 mm | Height | 10.8 mm |
| Weight | 0.002 | Material | :Glass Filled Polyester |
| Packaging | Bulk | Cable Exit | NO |
| Orientation | STRAIGHT | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Female Socket |
| Lead Spacing | :2.54mm | Pitch - Post | 2.54mm |
| Housing Color | Gray | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | PBT |
| Length - Overall | 17.3 mm | Package Quantity | 100 |
| Connector - Cable | socket | Termination Style | Through Hole |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Grey |
| Number of Contacts | 10 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 10 | Contact Finish Thickness | 12µin (0.30µm) |
| Contact Material - Plating | FLASHGOLD | 1st Connector Mounting Feature | 2x5 |
Product Info
| Spg | 100 | Type | Socket Strip |
| Gender | SKT | Series | 8500 |
| DELETED | Compliant | Features | Polarizing Key |
| Polarity | :Bump | Matchcode | 85104500PL |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - PCB |
| Number of Units | 1 | Standard Leadtime | 7 weeks |
| Other Specifications | NO | Number of Positions Loaded | All |
Environmental
| Mating Cycles | 1 | Operating Temperature | -55 TO 105°C |
Documents & Media
Similar Parts
N3793-6302RB
3m interconnect solutions
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 10POS STR LONG LATCH 3M 3000 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 10P STRT LONG PIN SOLDER TAIL 30u GOLD HEADER, STRAIGHT, L/LATCH, 10WAY Header;Latch-Ejector,4-Wall;0.1In;CopperAlloy;1.75A;HighTempPlastic;Str;10Cnts Socket; IDC; male; PIN:10; straight; with ejector; THT; gold plated 3M 3000 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
4610-6055
3m interconnect solutions
Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 10POS W/FLANGE&INSE Headers & Wire Housings 10P OPEN END PLUG
N3793-6003RB
3m interconnect solutions
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 10POS STR NO LATCH Headers & Wire Housings BOARDMT HDR 10 POS NO LATCH/EJECTOR
3793-1502UG
3m interconnect solutions
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole CONN HEADER 10PS R/A SHORT LATCH
N3793-5003RB
3m interconnect solutions
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 10POS R/A NO LATCH
N3793-5502
3m interconnect solutions
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole CONN HEADER 10PS R/A SHORT LATCH
N3793-6502RB
3m interconnect solutions
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 10POS STR GOLD T/H Headers & Wire Housings 10P STRT SOLDER TAIL LATCH/EJECTOR
N3793-620T02RB
3m interconnect solutions
Conn Ejector Header HDR 10 POS 2.54mm Press Fit ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 10PS STR SHORT LATCH Headers & Wire Housings HEADER 10PS STR SHORT LATCH
D2510-6V0C-AR-WD
3m interconnect solutions
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST SMD T/R CONN HEADER 10POS SMD VERT 10AU Headers & Wire Housings 10P 4WALL HEADER STRT SMT LO-PRO Header;LowProfile,4-Wall;0.1Inch;HighTemp;Straight;SMT;10Cnts;Polarized
D3793-6202-AR
3m interconnect solutions
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole CONN HDR 10POS VERT S-LATCH 10AU Headers & Wire Housings 10P STR HEADER SHORT LATCH 10U AU WIRE-BOARD CONN, HEADER, 10POS, 2.54MM
3793-5602
3M Electronic Solutions Division
Headers & Wire Housings 10P R/A SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 10POS R/A LONG LATCH
3793-2202
3M Electronic Solutions Division
Headers & Wire Housings 10P LOPRO STRT SDRTL .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 10PS STR SHORT LATCH
N3793-6203RB
3M Electronic Solutions Division
Headers & Wire Housings BOARDMT HDR 10 POS .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 10PS STR SHORT LATCH HEADER, STRAIGHT, S/LATCH, 10WAY
3793-1003
3M Electronic Solutions Division
Headers & Wire Housings 10 PIN RT ANG NO LTCH/EJEC .094-.125 .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 10POS R/A NO LATCH
3793-6002
3m interconnect solutions
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRT 10 CONTACT WIRE-BOARD CONN, HEADER, 10POS, 2.54MM 4-WallHeader.100in.,HighTempOption,Straight,10Contacts

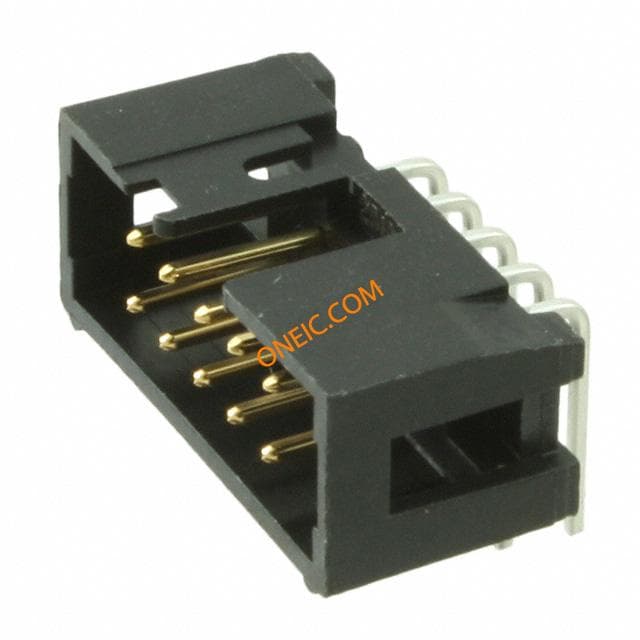

N2510-5003-RB
